Structural materials for panel boards and so on |
|
|
|
| DH Holder for Fuji Electric's Cartridge Fuse |
 |
|
| |
|
 Part Number |
Quantity in
one package |
|
30
|
|
|
|
Application |
It can be used as the attaching metal fitting for Fuji Electric’s Cartridge Fuse connecting basement ( P/N AFA60 ) to DIN rail of Shinohara. |
Features |
1) It can be fixed at appropriate position of DIN rail by fastening the fixed screw at one point.
2) The attaching surface at the fixing point can be flat by using flat head screw.
3) The tapped hole is prepared for easily fixing the cartridge fuse basement attaching metal fitting to DIN rail |
Materials |
SPC 1.2 mm thickness, Trivalent Chromate metal finishin |
|
|
|
|
| ▲PAGE TOP |
|
| DH Holder for One touch attachment type of Outlet |
 |
|
Installation example
|
|
|
Application |
It can be used as the metal attachment for fixing the outlet to DIN rail of Shinohara. |
Features |
Once the outlet has been fixed to the metal attachment and after that it can be attached easily without tooling by one touch action. And the labor saving can be done with it.
For maintenance work, it can be removed from DIN rail without removing the outlet from the metal attachment.

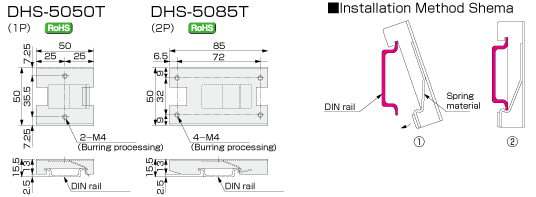

DHS-5050T: 2-M4:applicable to Panasonic outlet: WK-1012W, 1013W,
1821, 3001W, 3821, 3012, 3811
DHS-5058T: 4-M4 : applicable to Panasonic outlet: WK-3004W |
Materials |
1.2 mm thick steel plate + Spring material as Trivalent Chromate metal finishing |
|
