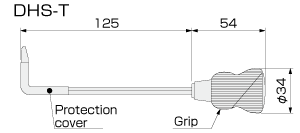

| Removal Tool for DH Holder(DHS) |
| DH Holder ( One touch type ) can be removed easily by this tool. |
|
Application |
It can be used to remove the outlet from the attachment metal fitting by this tool |
Features |
It can remove the outlet easily by pressing the spring portion of DHS with principle of leverage.
Note: please do not use this tool for other purpose. |
|
|
|
|
| ▲PAGE TOP |
|
| Protection Cover for DH Holder |
Protection Cover for the energized part of the sockets of relays and so on |
|
 |
|
Application |
It can be used as the protection cover ( Finger guard ) against the energized part of the sockets of Relays and so son together with DH Holder such as DHC-20,35,70 and 100 of Shinohara. |
Materials |
Transparent Polyvinylchloride resin |
|
|
■Example of the use
|
 |
|
|
|
| ▲PAGE TOP |
|
| DH Holder for the Noise filter |
 Part Number |
Quantity in
one package |
|
|
|
|
Application |
It can be used as the auxiliary metal fitting to DIN rail of Shinohara for the noise filter. |
Features |
1) It can be fixed at appropriate position of DIN rail by fastening the fixed screw at one point.
2) The attaching surface at the fixing point can be flat by using flat head screw.
3) The tapped hole is prepared for easily fixing the noise filter to DIN rail.
4) The push button attachment metal plate of Shinohara - PBK series products can be attached to DIN rail besides the noise filter. |
| Materials |
SPC 1.2 mm thickness, Trivalent Chromate metal finishing |
|
|
Noise Filter List applied to this DH Holder
TDK |
DENSEI-LAMBDA |
NEC Tokin |
|
|
GT-2100 |
ZAC2210-00U |
MAF-1210-33 |
GT-210U |
ZAC2215-00U |
MAF-1215-33 |
GT-2150 |
ZAC2220-00U |
MAF-1220-33 |
GT-215U |
ZAG2206-11S |
MAS-1206-33 |
GT-2200 |
ZAG2210-11S |
MAS-1210-33 |
GT-220U |
ZAG2220-11S |
MAS-1215-33 |
GT-2150R |
ZCB2203-11 |
MAS-1220-33 |
GT-2100R |
ZCB2206-11 |
MBW-12R5-22 |
GT-2200R |
ZGB22R5-01U |
MBW1201-22 |
GT-210J |
ZGB2201-01U |
MBW1202-22 |
GT-215J |
ZGB2202-01U |
MYW1203-22 |
GT-20301 |
ZGB2203-01U |
MZS-1206-33 |
GT-20302 |
ZHC2206-11 |
MZS-1210-33 |
GT-20501V |
ZHC2210-11 |
MZS-1215-33 |
GT-21001V |
ZHG2206-11S |
MZS-1220-33 |
GT-22001V |
ZHG2210-11S |
PBF-1201-22 |
|
ZMB2201-13 |
PBF-1202-22 |
|
ZMB2203-13 |
PBF-1203-22 |
|
|
PBF-1206-22 |
|
|
PBW-1201-33 |
|
|
PBW-1202-33 |
|
|
PBW-1203-33 |
|
|
PBW-1206-33 |
|
|
 |
|
|
|
