Steel Spacaer for
fixing the channel

Nut for ABC-Channel

Accessories for BCchannel(Attach-
ment componens)

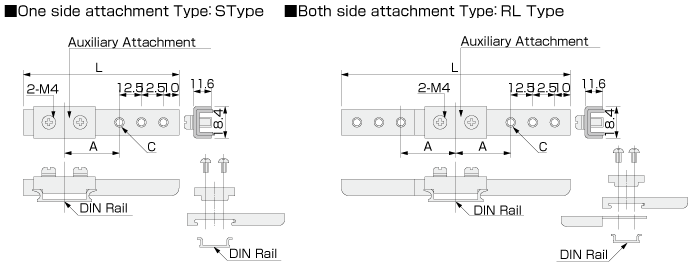

It can be used for attaching wiring ducts, terminal blocks, lug plates to DIN rail as the attaching metal fitting.

1) It can be fixed to appropriate place by fixing the screws at two place of this DH Holder.
2) The equipment can be fixed by the screws at 4 position, which M4 internal thread is already processed, and it can be used for fixing terminal blocks, relays and so on as the fixing metal fitting.

Materials

SPC 1.6 mm thickness
Trivalent Chromate metal finishing ( From the view of the protection of the Environment)

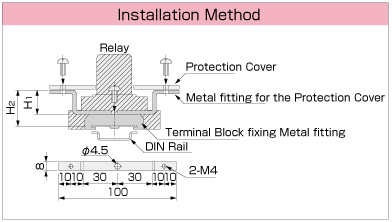

It can be used as the attachment holder for the protecting cover to Relays corresponding to DIN rail.

1) The protecting cover can be attached easily to the surrounding of energized part of Relays corresponding to DIN rail by fixing the terminal block metal fitting together.
2) The metal fitting can be sold as the set upon request and such P/N is accompanying T at the last position. Example: DHC-35T
3) Special sizes such as height and width can be made upon request

Materials

Steel plate 2.3 mm thickness
Trivalent Chromate metal fishing
