Structural materials for panel boards and so on |
|
|
|

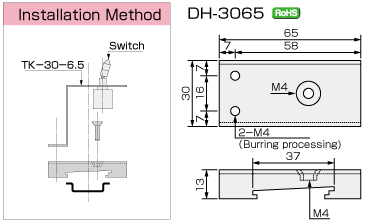

| DH Holder for fixing the switch |
|
|
|
 Part Number |
Summary |
Quantity in
one package |
|
It can be used for Switch Attaching Metal Fitting of Shinohara, TK-30 and TK-30-6.5.
|
30
|
|
Application |
It can be used for fixing toggle switch and volume switch to DIN Rail of Shinohara together with Switch attaching metal fitting such as TK-30, TK-30-6.5 and so on. |
Features |
1) It can be fixed at appropriate position of DIN rail by fastening the fixed screw at one point.
2) The attaching surface at the fixing point can be flat by using flat head screw.
3) The tapped hole is prepared for easily fixing the switch attaching metal fitting to DIN rail. |
Materials |
SPC 1.2 mm thickness
Trivalent Chromate metal finishin |
|
 |
|
|
|
| ▲PAGE TOP |
|

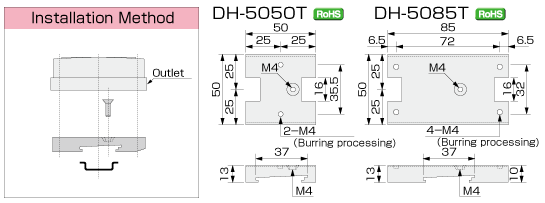

| DH Holder(Outlet attachment Type) |
 |
|
| Part Number |
Quantity in
one package |
|
30 |
|
20 |
|
|
|
Application |
It can be used as the auxiliary metal fitting to DIN rail of Shinohara for the outlet. |
Features |
1) It can be fixed at appropriate position of DIN rail by fastening the fixed screw at one point.
2) The attaching surface at the fixing point can be flat by using flat head screw.
3) The tapped hole is prepared for easily fixing the switch attaching metal fitting to DIN rail.
DH-5050T-R0 : applicable for Panasonic outlet Type: WK-1012W,1013W,1821, 3001W,
3821, 3012, 3811
DH-5085T-R0: applicable for Panasonic outlet Type: WK-3004W
4) Upon request, DH Holder for the noise filter can be made. |
Materials |
SPC 1.2 mm thickness, Trivalent Chromate metal finishing |
 |
|
|
