DIN Rail

Examples of the installation


Height 15mm	End-cap

Application

These products can be used as the metal fittings with 35 mm width in compliance with DIN Standard for attaching the instruments.

Features

1) These products are in compliance with JIS Standards JIC-C-2812.
2) Terminal blocks, Sockets and Electronic equipment, which are in compliance with DIN Standard for 35mm width rail,can be attached freely at any locations and it is easy to be taken off freely from the rail.

Materials

Aluminum plate or Steel plate (SDS)

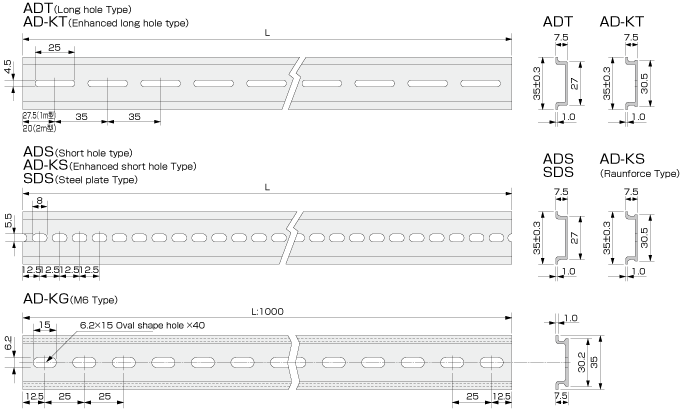

Standard Type
P/N	Material	Hole Shape	Ｌ（Standard Length）	Quantity in one package
ADT-7-10	Aluminum Steel	Long hole	1000	100
ADT-7-20	Aluminum Steel	Long hole	2000	50
ADS-7-10	Aluminum Steel	Short hole	1000	100
ADS-7-20	Aluminum Steel	Short hole	2000	50
AD-KT-10	Aluminum Steel	Long hole	1000	100
AD-KT-20	Aluminum Steel	Long hole	2000	50
AD-KS-10	Aluminum Steel	Short hole	1000	100
AD-KS-20	Aluminum Steel	Short hole	2000	50
AD-KG-10	Aluminum Steel	Short hole	1000	100
AD-KG-20	Aluminum Steel	Short hole	2000	50
SDS-7-10E	Steel plate	Short hole	1000	50
Thicker Type
P/N	Material	Hole Shape	Ｌ（Standard Length）	Quantity in one package
ADT-7-10B	Aluminum Steel	Long hole	1000	100
ADT-7-20B	Aluminum Steel	Long hole	2000	50
ADS-7-10B	Aluminum Steel	Short hole	1000	100
ADS-7-20B	Aluminum Steel	Short hole	2000	50
AD-KT-10B	Aluminum Steel	Long hole	1000	100
AD-KT-20B	Aluminum Steel	Long hole	2000	50
AD-KS-10B	Aluminum Steel	Short hole	1000	100
AD-KS-20B	Aluminum Steel	Short hole	2000	50

▲PAGE TOP

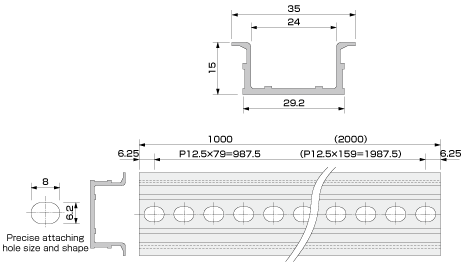

DIN Rail(Height 15mm Type)

Examples of the installation


Din Rail	End-cap

Features

1) These products are in compliance with JIS C 2812.
2) It is suitable for attaching the large equipment as the height of it is 15 mm and by using the normal DIN rail with 7.5 mm height together it is much convienient for making the height difference.
Note：The special manual cutter is reared for these roducts.

P/N	Material	Ｌ（Standard Length）	Quantity in one package
ADMH-10	Aluminum Steel	1000	50
ADMH-20	Aluminum Steel	2000	25

▲PAGE TOP

End-cap for DIN Rail Cutting Tool


Din Rail	Height 15mm

Application

The cutting parts of DIN rail can be covered by it for the safety work.

Applicable

DIN Rail: ADT, AD-KT,ADS,AD-KS,AD-KG

Materials

Soft Polyvinylchloride resin
