| Accessories for ABC-channel(Attachment componens) |
|
| |
Accessories for ABC-channel (V-2,V-3,VD-45) |
| Application |
Attachment metal fitting for instruments, terminals, DIN rail, wiring ducts |
| Material |
Trivalent Chromate plating steel |
|
|

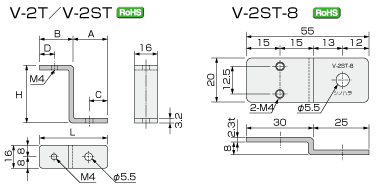

| V-2 Series Accessries |
 |
| Features |
Improved accessory with flat portion at the upper part and flexible selection of the products for the designing |
 |
 Part Number |
A
|
B
|
C
|
D
|
H
|
|
Net Weight PCS(g) |
|
| V-2T |
|
|
10 |
13 |
|
|
30 |
100 |
| V-2ST |
15 |
27 |
8 |
13 |
15 |
42 |
20 |
100 |
|
|
| V-3 Series Accessries |
 |
|
| Features |
1) Space reduction with V-3 series accessory to fix DIN rails and wiring ducts
2) Improvement of wiring by the adoption of 65 degree declination portion at the upper part of the product |
| Part Number |
A（mm） |
|
Net Weight PCS(g) |
|
| V-3-25 |
|
|
33 |
100 |
| V-3-50 |
25 |
50 |
44 |
50 |
| V-3-75 |
50 |
75 |
56 |
50 |
| V-3-100 |
50 |
100 |
67 |
100 |
| V-3-150 |
50 |
150 |
90 |
100 |
|
|
| VD-45 |
 |
|
| Features |
Convenient for fixing wiring duct directly to the channel base |
| Part Number |
Net Weight PCS(g) |
|
| VD-45 |
23 |
100 |
|
|
|
| |
|
| V-25-H |
 |
|
| Application |
Auxiliary attachment metal fitting for instruments, wiring ducts, terminals with ABC-channe |
| Features |
Trivalent Chromate plating steel Thickness 1.6 mm |
| Material |
Flat steel
Electric galvanization trivalent chromate processing finish
|
| Part Number |
Net Weight PCS(g) |
|
| V-25-H |
25 |
100 |
|
|
| |
