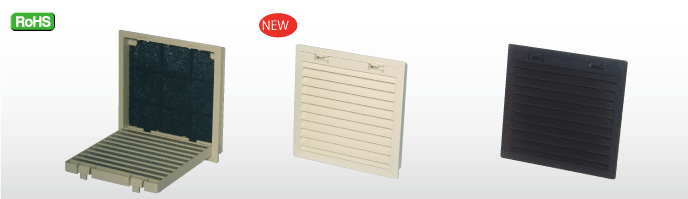

New Product Plastic Louver(Front opening and closing type) |
Installation is simple!!
It can be attached to a panel in one-touch operation and also can be performed the maintenance of the filter only by the work from the front. 2.5Y 9/1 is added to conventional type!
|
Panel cut
Filter(Option)
Louver
■ Usage example
|
| Application |
Please use it as a ventilation opening of control panel・control board,etc. |
| Features |
1)
2) |
Installation is simple.The work is completed just to put into the panel cut from the front.
The maintenance of the filter can be also done by removing a louver part from the front. |
|
| Quality of material |
Main frame: ABS resin
Filter: Non-woven fabric(Model :GPVF-12) |

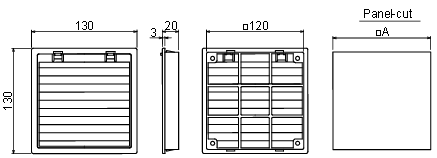

Panel thickness |
DimensionA |
1.6t |
120.5 |
2.0t |
2.3t |
121 |
|
 |
