Powerful jet-proof type louver IP45

G2-15BF,G2-20BF,G2-30BF,G2-45BF
防噴流型ギャラリーＩＰ４５

Antirust painting:RoHS Compliant

G2-2015BF

Plastic resin cover

Seawater salt resistant

Application

The product can be used for the cubicle and the panel board installed outside especially under the severe rainwater.

Features

1. The large panel cutting is not needed for the ventilating in comparison with the usual type. The louver can be attached to the panel as the component afterward.
2.The ventilating louver and the blow invention cover are integrated for this louver. It shows good water-proof and satisfies the requirement of Powerful jet proof test in JIS C 0920.
3.Stainless steel type is also provided, if requested.

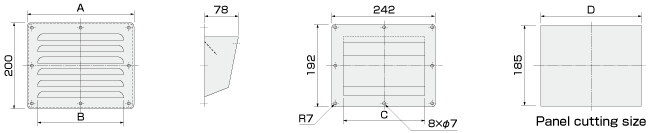

2015Type

Part No.	Size				Material and Specification					Panel opening area （cm²））

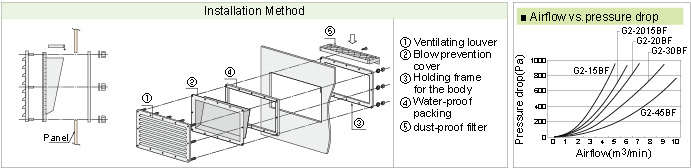

	A	B	C	D	①Ventilating louver	② Blow prevention cover	③Holding frame for the body	④Water-proof packing	⑤dust-proof filter
G2-2015BF	250	200	194	235	Electro-galvanizing steel plate 2.3mm thick	Electro-galvanizing steel plate1.6mm thick	Steel plate 1.6mm thick	Neoprence sponge rubber	Non-woven fabric filter P/N G20BF-F	75
G2-2015BFS					Stainless steel 1.5mm thick	Electro-galvanizing steel plate1.6mm thick
G2-2015BF-AS						Stainless steel 1.5mm thick	Stainless steel 1.5mm thick
Remarks					Electro-galvanizing steel plate: no-painting Stainless steel:hairline finishing	Electro-galvanizing steel plate: no-painting	Steel plate：Chromate plating		Aluminum frame included

Note
1)Antitrust paint: Product P/N 050-4113 of ROCK PAINT Co., Ltd. Japan The special panting to the final coating can be provided, if necessary.
2)The clear painting for Stainless steel type can be provided, if requested.
3)The panel opening area means the panel cutting area of the front of a louver.

▲PAGE TOP

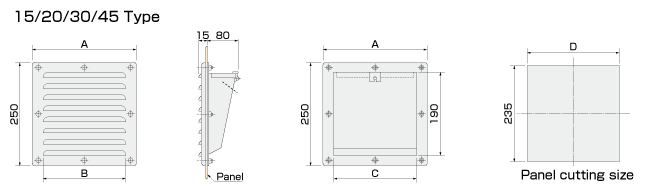

15Type　

Part No.	Size				Material and Specification					Panel opening area （cm²））
	A	B	C	D	①Ventilating louver	②Blow prevention cover	③Holding frame for the body	④Water-proof packing	⑤dust-proof filter
G2-15BF	200	150	145	185	Steel plate2.3mm thick	Steel plate1.6mm thick		Neoprence sponge rubber	Non-woven fabric filter P/N G15BF-F	75
G2-15BFS					Stainless steel 1.5mm thick
G2-15BF-AS					Stainless steel 1.5mm thick

20Type

Part No.	Size				Material and Specification					Panel opening area （cm²））
	A	B	C	D	①Ventilating louver	②Blow prevention cover	③Holding frame for the body	④Water-proof packing	⑤dust-proof filter
G2-20BF	250	200	194	235	Steel plate2.3mm thick	Steel plate1.6mm thick		Neoprence sponge rubber	Non-woven fabric filter P/N G20BF-F	100
G2-20BFS					Stainless steel 1.5mm thick
G2-20BF-AS						Stainless steel 1.5mm thick

30Type

Part No.	Size				Material and Specification					Panel opening area （cm²））
	A	B	C	D	①Ventilating louver	②Blow prevention cover	③Holding frame for the body	④Water-proof packing	⑤dust-proof filter
G2-30BF	350	300	303	335	Electro-galvanizing steel plate 2.3mm thick	Electro-galvanizing steel plate1.6mm thick	Steel plate1.6mm thick	Neoprence sponge rubber	Non-woven fabric filter P/N G30BF-F	216
G2-30BFS					Stainless steel 1.5mm thick
G2-30BF-AS					Stainless steel 1.5mm thick

45Type

Part No.	Size				Material and Specification					Panel opening area （cm²））
	A	B	C	D	①Ventilating louver	②Blow prevention cover	③Holding frame for the body	④Water-proof packing	⑤dust-proof filter
G2-45BF	500	450	453	485	Electro-galvanizing steel plate 2.3mm thick	Electro-galvanizing steel plate1.6mm thick	Steel plate1.6mm thick	Neoprence sponge rubber	Non-woven fabric filter P/N G45BF-F	335
G2-45BFS					Stainless steel 1.5mm thick
G2-45BF-AS						Stainless steel 1.5mm thick

Remarks

Steel plate:Surface finishing
Antirust painting
Stainless steel:hairline finishing

Steel plate:Surface finishing
Antirust painting
Electro-galvanizing steel plate:
no-painting

Steel plate：Chromate plating

Aluminum frame
included

▲PAGE TOP

Powerful Water-proof Louver（Plastic resin cover）　IP45 （Plastic resin filter if used:IP55 satisfied）

Antirust painting:RoHS Compliant

he blow prevention cover at the back is made of the plastic resin and it can make the light weight and the cost reduction on the product itself.

Features

1. By the plastic resin cover the light weight and the cost reduction of the products can be made and the workability of attaching it to the panel can be improved. No painting for the cover is needed and then the cost reduction can be made.
2. It has good water-proof performance and satisfies the requirement of JIS C 4620 and JIS C 0920 ( Powerful water-proof test )

Out doors

Seawater salt resistant

Part No.	Size				Material and Specification					Panel opening area （cm²））
Part No.	A	B	C	D	①Ventilating louver	②Blow prevention cover	③Holding frame for the body	④Water-proof packing	⑤dust-proof filter	Panel opening area （cm²））
G2-20BFP	250	200	194	235	Steel plate2.3mm thick	Plastic resin material	Steel plate1.6mm thick	Neoprence sponge rubber	Non-woven fabric filter P/N G20BFP-F	100
G2-20BFPS	250	200	194	235	Stainless steel 1.5mm thick	Plastic resin material	Stainless steel 1.5mm thick		Non-woven fabric filter P/N G20BFP-F	100
G2-45BFP	500	450	444	485	Electro-galvanizing steel plate 2.3mm thick	Plastic resin material			Non-woven fabric filter P/N G45BFP-F	335
G2-45BFPS	500	450	444	485	Stainless steel 1.5mm thick	Plastic resin material			Non-woven fabric filter P/N G45BFP-F	335
Remarks					Steel plate:Surface finishing Antirust painting Stainless steel:hairline finishing	Flame-resistant characteristics UL94-V-O 5Y7/1 Color	Steel plate：Chromate plating		Plastic resin frame included

Note:
1)Antitrust paint: Product P/N 050-4113 of ROCK PAINT Co., Ltd. Japan The special panting to the final coating can be provided, if necessary.
2)The clear painting for Stainless steel type can be provided, if requested.
3)The panel opening area means the panel cutting area of the front of a louver.

For Powerful water-proof louver,the salt resistant filter can be used simply The plastic resin type for the bloe prevention cover

G2-15/30BFの樹脂製吸込防止カバータイプです。

Application

It can be used for distribution panel boards, control panel boards, operation panel boards and cubicles as the comp0nents of panel opening

Features

1.By the plastic resin cover the light weight and the cost reduction of the products can be made and the workability of attaching it to the panel can be improved. No painting for the cover is needed and then the cost reduction can be made.
2.It has good water-proof performance and satisfies the requirement of JIS C 0920 ( Powerful water-proof test )
3. By changing the attachment direction of the filter holding frame the dust-proof filter and the salt resistant filter can be selected.

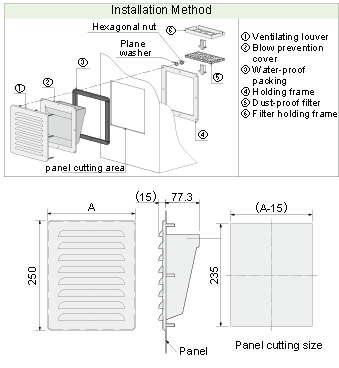

Part No.	Size		Material and Specification						Remarks
Part No.	A	A-15	①Ventilating louver	②Blow prevention cover	③Holding frame for the body	④Water-proof packing	⑤dust-proof filter	⑥Filter holding frame	Remarks
G2-15BFP2	200	185	Steel plate2.3mm thick	polypro pylene	Neoprence sponge rubber	Steel plate 1.6mm thick	Non-woven fabric filter (G15BFP2-F*）	polypro pylene	IP45
G2-15BFP2S	200	185	SUS304 1.5mm			SUS304 1.5mm	Non-woven fabric filter (G15BFP2-F*）		IP45SUS Louver
G2-15BFP2ST	200	185	SUS304 1.5mm			SUS304 1.5mm	Salt resistant filter(G15BF-FST-F*)		IP55 Salt resistant filter includ.
G2-20BFP2	250	235	Steel plate2.3mm thick			Steel plate 1.6mm thick	Non-woven fabric filter(G20BFP2-F*)		IP45
G2-20BFP2S	250	235	SUS304 1.5mm			SUS304 1.5mm	Non-woven fabric filter(G20BFP2-F*)		IP45SUS Louver
G2-20BFP2S-T	250	235	SUS304 1.5mm			SUS304 1.5mm	Salt resistant filter(G20BF-FST-F)		IP55 Salt resistant filter includ.
G2-30BFP2	350	335	Electro-galvanizing steel plate 2.3mm thick			Steel plate 1.6mm thick	Non-woven fabric filter (G30BFP2-F*)		IP45
G2-30BFP2S	350	335	SUS304 1.5tmm			SUS304 1.5mm	Non-woven fabric filter (G30BFP2-F*)		IP45SUS Louver
G2-30BFP2S-T	350	335	SUS304 1.5tmm			SUS304 1.5mm	Salt resistant filter (G30BF-FST-F)		IP55 Salt resistant filter includ.
G2-45BFP2	500	485	Electro-galvanizing steel plate 2.3mm thick			Steel plate 1.6mm thick	Non-woven fabric filter (G45BFP2-F*)		IP45
G2-45BFP2S	500	485	SUS304 1.5tmm			SUS304 1.5mm	Non-woven fabric filter (G45BFP2-F*)		IP45SUS Louver
G2-45BFP2S-T	500	485	SUS304 1.5tmm			SUS304 1.5mm	Salt resistant filter(G45BF-FST-F)		IP55 Salt resistant filter includ.
