G2-20FM indoor type with the replacement of the filter at the front side |
G2-20FM RoHS compliant ( The surface painting in compliance with RoHS requirement.)
 The filter can be replaced at the front of the louver easily. |
| Application |
| The product can be used for the distribution board, control board, operation board and the cubicle as the component of panel opening. |
| Features |
1) The maintenance work can be reduced sharply to replace the filter at the front side of the louver.
2) The manual processing for panel opening will not be needed compared to the normal type and the labor saving can be also made sharply. And the additional ventilation opening can be made easily. |
|
Specification
| |
Part s |
Material |
Remarks |
@ |
Ventilating louver |
|
Surface finishing Antirust paiting |
A |
dust-proof filter |
Non-woven
fabric filter |
G2-20FM-F |
B |
Holding frame for the body |
|
Trivalent chromate Treatment |
Note
1)Antitrust paint: Product P/N 050-4113 of ROCK PAINT Co., Ltd. Japan The special panting to the final coating can be provided, if necessary.
2)The clear painting for Stainless steel type can be provided, if requested.

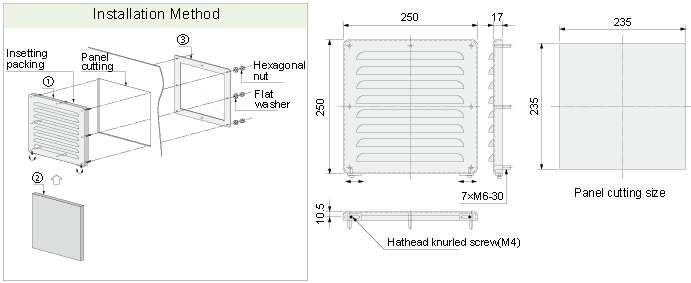

3)The panel opening area means the panel cutting area of the front of a louver. |
|
The panel opening area means the panel cutting area of the front of a louver.
Note: The specification of the products will be changed for the improvement before the information will be released. |
|
|
