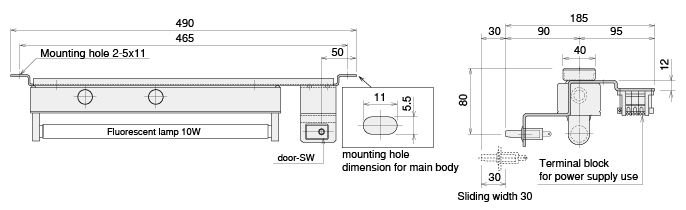

| Fluorescent Lamp Unit (FLT Type) |
Three functions of fluorescent lamp,door switch and terminal block are combined in a single unit.
It can be easily set up and the labor-saving of the work can be achieved. |
The photograph shows FLT-115L.
Example of installation
|
| Application |
|
Please use it as a fluorescent lamp unit for lighting of board
such as distributing board and control panel board. |
| Features |
1)As special tool and peculiar parts are not necessary.
2)It can be easily set up and labor-saving of the work
can be attained.
3)Fluorescent lamp with door-switch turns on when opening
the door of switch-board. In addition,as the mounting bracket
for switch slides back and forth, fine adjustment is possible.
(sliding width : 30mm)
4)As the terminal block is attached to the fluorescent
lamp unit electric wiring is easy. |

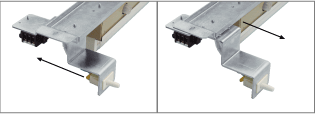

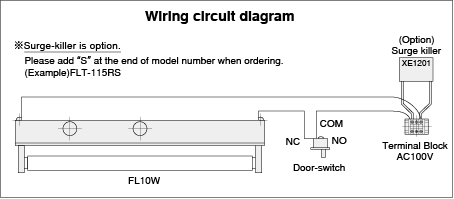

・The location of door-switch can make fine adjustment back and forth.
(Sliding width : 30mm)
・Running stroke of the switch : 12.05mm
(Min.10.2mm and Max.22.25mm from the mounting surface)
|
| P/No.RoHS |
Application |
Q’ty per
package |
Specification |
Set contents |
| FLT-115R (Switch:right side) |
For 50Hz area |
1 |
AC100V 10W |
Fluorescent lamp(Mfd. by Panasonic),
Door-switch,Terminal block,Metal fitting. |
| FLT-115L (Switch:left side) |
| FLT-116R (Switch:right side) |
For 60Hz area |
1 |
AC100V 10W |
Fluorescent lamp(Mfd. by Panasonic),
Door-switch,Terminal block,Metal fitting. |
| FLT-116L (Switch:left side) |
| FLT-215R (Switch:right side) |
For 50Hz area |
1 |
AC200V 10W |
Fluorescent lamp(Mfd. by Odelic),
Door-switch,Terminal block,Metal fitting. |
| FLT-215L (Switch:left side) |
| FLT-216R (Switch:right side) |
For 60Hz area |
1 |
AC200V 10W |
Fluorescent lamp(Mfd. by Odelic),
Door-switch,Terminal block,Metal fitting. |
| FLT-216L (Switch:left side) |
※Fluorescent lamp mfd by other manufacturer is also available. Please let us know separately.
※Please let us know if you’d like to prefer LED type.
※Environmentally friendly trivalent chlomate plating steel. |
|
| ▲PAGE TOP |
|
| Fluorescent Lamp Unit (Popular Type) |
The photograph shows FLS-115L.
(Switch:left side)
Example of installation
It is wiring example using the duct on the back side.
|

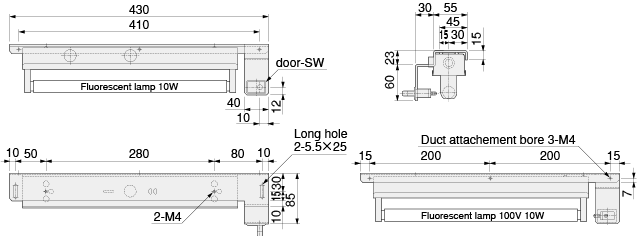

Features |
|
1) Labor saving of the work---Wiring between fluorescent lamp
−door switch is unnessary and the installation to a enclosure
case is easy,too.
2) Cost reduction---The inventory control for every parts becomes
unnessary,and ordering cost and acceptance cost will be reduced.
3) Part mark reduction---Fluorescent lamp attachment lug and
door switch attachment lug are unnecessary.
4)
Position adjusting is possible.---The attachment hole is
a long hole and anterosposterior position adjusting within
20mm is possible. |
※Electric wire length for power supply connection:500mm
※Surge-killer is option.
Please add “S” at the end of model number when ordering.
(Example)FLS-115RS |
 |
| P/No.RoHS |
Application |
Q’ty per
package |
Specification |
Set contents |
| FLS-115R (Switch:right side) |
For 50Hz area |
1 |
AC100V 10W |
Fluorescent lamp(Mfd. by Toshiba),
Door-switch,Terminal block,Metal fitting. |
| FLS-115L (Switch:left side) |
| FLS-116R (Switch:right side) |
For 60Hz area |
1 |
AC100V 10W |
Fluorescent lamp(Mfd. by Toshiba),
Door-switch,Terminal block,Metal fitting. |
| FLS-116L (Switch:left side) |
※Fluorescent lamp mfd by other manufacturer is also available. Please let us know separately.
※Please let us know if you’d like to prefer LED type.
※Environmentally friendly trivalent chlomate plating steel. |
| |
|
