| LED Unit |
| It is a fluorescent pipe type LED lighting having a longer operating life and energy saving. |
 |
 |
|
| The photograph shows FLED-1010U-R. |
A lighting source part only will be available separately. P/No.:FLED-1010
The length of power source lead line : 1m |
|
| Application |
Please use it as a fluorescent lamp unit for lighting of board such as
receiving and distributing board,panel board and control board. |
Example of installation
・The position of a door switch can be adjusted
forward and backward. (Slide width:30mm)
・Switch operation stroke : 12.05mm |
| Features |
【Long service life】
Approximately five times longer lasting than
the conventional type of fluorescent lamp.
【Energy saving】
Power consumption is about half as compared
to the conventional type of fluorescent lamp.
【Eco】
It is the clean illumination that does not use mercury.
【Low heat】
It is safe without becoming hot like a fluorescent lamp.
【Low ultra-violet rays】
Because it gives off almost none of the ultraviolet rays,
not to allow pests to come near in the board and
the surrounding area and it can prevent the invasion.
【Impact resistance】
It is reliable for the vibrations during transportation and a shock
at the time of the setting because the glass is not used at all.
【Compatibility】
Since a shadeless appliance(trough) from the former has been used,
replacement with established lighting can also be performed easily. |
※A fluorescent tube only cannot be changed.Please exchange every appliance(trough). |
Specification of
the light source

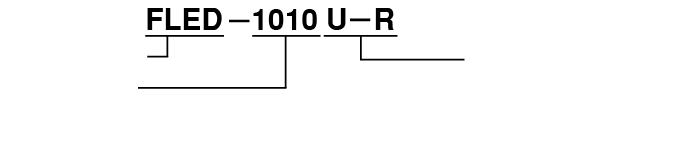

Basic parts number
None:Light source only(With a trough)
U―R：Unit with metal fittings
Door switch right-hand side
U―L：Unit with metal fittings
Door switch left-hand side
Unit form
1010：AC100V An equivalent for fluorescent light 10W
1020：AC100V An equivalent for fluorescent light 20W
2010：AC200V An equivalent for fluorescent light 10W
※AC220V,AC240V correspond.
|
| P/No. |
FLED-1010U-R(L) |
FLED-1020U-R(L) |
FLED-2010U-R(L) |
| Rated voltage |
100V |
100V |
200V |
| Input current |
70mA |
180mA |
40mA |
| Power consumption |
5W |
13W |
5W |
| Withstand voltage |
AC1500V for one minute |
| Insulation resistance |
More than 100MΩ at DC500VMega |
Operating ambient
temperature |
-10℃〜＋45℃
(Non condensing and freezing) |
| Life of LED light |
approx.40,000hrs |
| Illuminance |
95Lx(right under 1m) |
240Lx(right under 1m) |
95Lx(right under 1m) |
| Lighting angle |
Approx.160° |
| W dimension |
490 |
720 |
490 |
| P dimension |
465 |
695 |
465 |
|

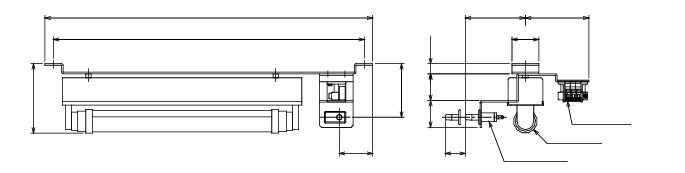

Attachment hole：2-5.5x11 Ellipse hole
P dimension
Power supply
terminal box
W dimension
50
40
30
80
Door switch
(90)
15
40
LED light source
40
95
40
40
(Slide width)
LED light source

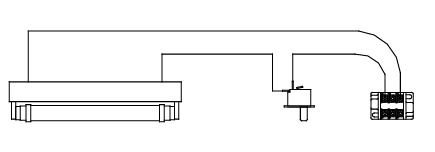

Wiring diagram
NC
Power supply
terminal box
Door
switch
NO
|
|
