| yNEWzNew type of LED Unit CLED-1004TB |
The unit type which unified the trunk terminal stand was made into
the new style LED lighting of large popularity.
|
 |
Example of installation
 |
|
| Application |
| Please use it for lighting use for boards, such as switchboard, distribution board, and operator control panel. |
| Features |
| Long service life |
@Approximately five times longer lasting than the conventional type of fluorescent lamp. |
| Energy saving |
@Power consumption is about half as compared to the conventional type of fluorescent lamp. |
| Eco |
@It is the clean illumination that does not use mercury. |
| Low heat |
@It is safe without becoming hot like a fluorescent lamp. |
| Low ultra-violet rays |
@Because it gives off almost none of the ultraviolet rays, not to allow pests to come near in the board and
the surrounding area and it can prevent the invasion. |
| Impact resistance |
@It is reliable for the vibrations during transportation
and a shock at the time of the setting because
the glass is not used at all. |
| Compactness |
@Due to small and simple design,it is easy to
install in a board and is lightweight. |
| To be brighter |
@It is the design that held noise emission-saving,
a conduction and radiation noise. |
| Installation flexibility |
@As compared to our conventional type of
product(equivalent to FL10W),
it can realize brightness of approximately 1.5times
with 90% of consumption electricity. |
| Labor saving |
@Since the trunk terminal stand for power supply
lines is united with metal fittings, laborsaving of
wiring can be attained. |
|
| Specification |
| Part No. |
@CLED-1004MG |
| Rated voltage |
@AC100V`240V 50/60Hz |
| Input current |
@55mA |
| Power consumption |
@4.5W(±10%) at 100V |
| Withstand voltage |
@AC1500V for one minute |
| Insulation resistance |
@More than 100MΩ at DC500Vmega |
Operating ambient
temperature |
@]20`{50
(Non condensing and freezing)
|
| All speed of light |
@600lm(±10%) |
| Reference illuminance |
@150Lx(right under 1m) |
| Lighting angle |
@Approx.160° |
| Life of LED light |
@40,000Hrs |
| Unit mass |
@310g |
Please deal with it correctly in the case of use for you to often read an operation manual.
Please keep in mind that transportation in the state where it attaches has fear of fall.

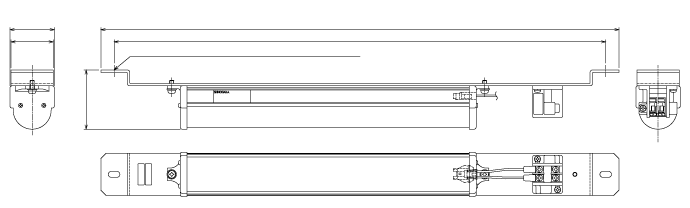

465
490
2-5.5×11 Ellipse hole (mounting hole)
56
|
|
|
| £PAGE TOP |
|
| yNEWzNew type LED Unit (magnet type for maintenance check) CLED-1004MG |
The magnet attachment type was added to new style LED series!
It is the magnet sheet which is gentle to the painted surface.
|
 |
@
@Since the magnet sheet is attached,
@removal can be done simply!
@(Magnet sheet specification)
@Adsorption power: more than 9.31kPa(95gf/cm2)
@Surface inductive flux: more than 58mT |
|
| Application |
Please use it for lighting use for boards, such as switchboard, distribution
board, and operator control panel.
|
| Features |
| Long service life |
@Approximately five times longer lasting than
@the conventional type of fluorescent lamp. |
| Energy saving |
@Power consumption is about half as compared
@to the conventional type of fluorescent lamp. |
| Eco |
@It is the clean illumination that does not use mercury. |
| Low heat |
@It is safe without becoming hot like a fluorescent lamp. |
| Low ultra-violet rays |
@Because it gives off almost none of the ultraviolet rays,
@not to allow pests to come near in the board and
@the surrounding area and it can prevent the invasion. |
| Compactness |
@Due to small and simple design,it is easy to
@install in a board and is lightweight. |
| Noise-saving |
@It is the design that held noise emission-saving,
@a conduction and radiation noise. |
| Installation flexibility |
@Since it attaches with a magnet sheet, it is possible
@not only the upper part in a board but to illuminate
@from the side or the bottom. |
|
Example of installation
 |
| Specification |
| Part No. |
@CLED-1004MG |
| Rated voltage |
@AC100V`240V 50/60Hz |
| Input current |
@55mA |
| Power consumption |
@4.5W(±10%) at 100V |
| Withstand voltage |
@AC1500V for one minute |
| Insulation resistance |
@More than 100MΩ at DC500Vmega |
Operating ambient
temperature |
@]20`{50
@(Non condensing and freezing)
|
| All speed of light |
@600lm(±10%) |
| Reference illuminance |
@150Lx(right under 1m) |
| Lighting angle |
@Approx.160° |
| Life of LED light |
@40,000Hrs |
| Unit mass |
@310g |
Please deal with it correctly in the case of use for you to often read an operation manual.
Please keep in mind that transportation in the state where it attaches has fear of fall.

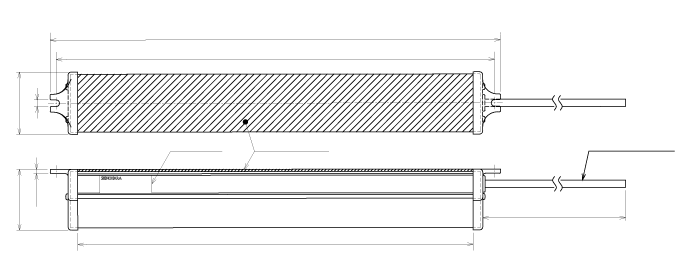

296
304
2.8
(Illumination section)
41
Rated display
Magnet sheet
Power cable
AWG22 two cores(2m)
267
|
|
|
| £PAGE TOP |
| |
|
