A built-in unit type fitted with both door switch and terminal block for power source
use has completed,in addition to extremely popular new type LED lighting.
|
 |
Example of installation
 |
|
Part No.：
CLED-1004U-R (Right-hand side switch)
CLED-1004U-L (Left-hand side switch)
|
・Door switch position has adjustable backward and forward.
(Sliding width: 30mm)
・Switch operation stroke: 12.05mm |
A lighting source part only can be available separately.(Part No.CLED-1004) |
|
| Application |
Please use it as a fluorescent lamp unit for lighting of board such as
receiving and distributing board,panel board and control board.
|
| Features |
| Long service life |
Approximately five times longer lasting than the conventional type of fluorescent lamp. |
| Energy saving |
Power consumption is about half as compared to the conventional type of fluorescent lamp. |
| Eco |
It is the clean illumination that does not use mercury. |
| Low heat |
It is safe without becoming hot like a fluorescent lamp. |
| Low ultra-violet rays |
Because it gives off almost none of the ultraviolet rays, not to allow pests to come near
in the board and the surrounding area and it can prevent the invasion. |
| Impact resistance |
It is reliable for the vibrations during transportation and a shock
at the time of the setting because the glass is not used at all. |
| Compactness |
Due to small and simple design,it is easy to install in a board and is lightweight. |
| To be brighter |
As compared to our conventional type of product(equivalent to FL10W),
it can realize brightness of approximately 1.5times with 90% of consumption electricity. |
|
| |
| Specification |
| Part No. |
CLED-1004 |
Operating ambient
temperature |
‐20℃〜＋50℃
(Non condensing and freezing) |
| Rated voltage |
AC100V 50/60Hz |
|
|
| Input current |
55mA |
Reference illuminance |
150Lx(right under 1m) |
| Power consumption |
4.5W (±10％) |
Lighting angle |
Approx.160° |
| Insulation resistance |
More than 100MΩ at DC500Vmega |
Life of LED light |
40,000Hrs |
| Withstand voltage |
AC1500V for one minute |
Unit mass |
165g |

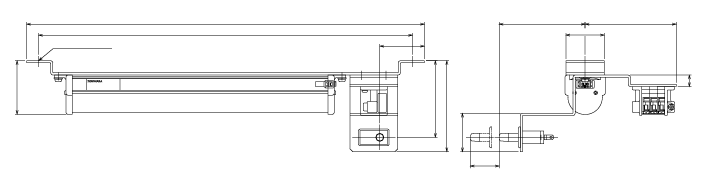

390
415
46.5
40
80
40
(mounting hole)
30
95
12
95
(90)
(Sliding width)
|
|
|
