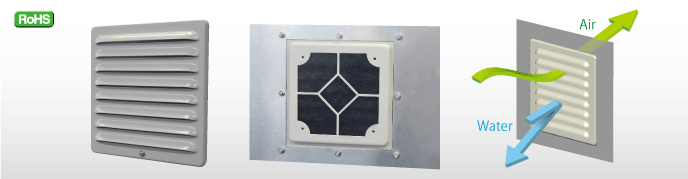

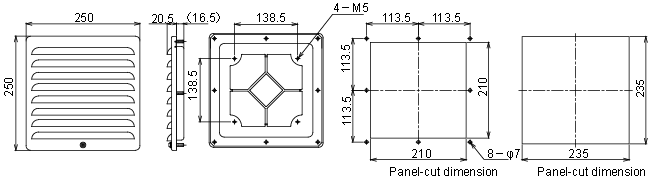

New Product Low profile jet-proof type Louver 【GTS-20W】 IP45
Installation example of exhaust fan
(Fan is option)
Application
Please use it as 『ventilating louver』 for cubicle,power board etc.
to be set up under the outdoor location where is exposed to
the elements and also the weather conditions are harsh.
Features
1)
Having international code equivalent of conventional product,
we have achieved the significant down sizing for the depth
dimension of a louver. You can work for the space-saving.
2)
Thanks to the effect of inner parts, as filter surface is hard to
be exposed to the lements, ventilation capacity of inside filter
shall not be lowered by the water screen even in the rain.
3)
Service maintenance of filter can be done from the front.
4)
It is possible to mount a fan with 160-degree at the back side of
Louver.
(Please use it as exhaust application when mounting a fan.)
Quality of material
Louver :
SUS304 t1.5 5Y7/1 coated.
Filter case :
SUS304 t1.2 5Y7/1 coated.
Inner parts :
Polypropylene
Dustproof filter :
Non-woven filter
※In case of displacement from the conventional
jet-proof type louver (Type G2-20BF).
Tap frame(option) is necessary.Tap frame model(G20BFS-WD)
Motion picture for waterproofing verification test on Newly released Power-full Jet-proof Type Thin Louver
This video picture is taken for the water invasion preventing function of the louver by the test result,
which it is shown clearly that the air can be going through the lover,itself by using smoke and
at the same time the water cannot be going the louver by the inner parts.
Whenever the jet water wil be sprinkled on the louver it cannot be going into the internal part
of the louver by the inner parts and as the result the inner filter will not be wet by satisfying the requirement of IP45.
And also the air pressure drop through the louver will not be recognized as well as the normal louver.

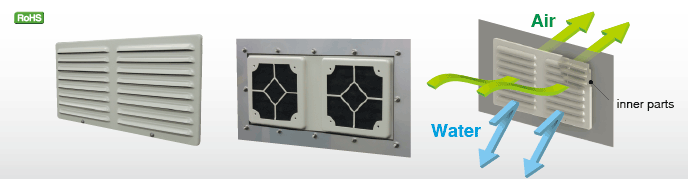

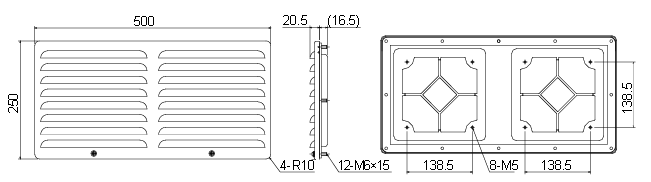

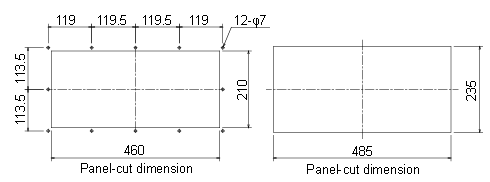

New Product Low profile jet-proof type Louver 【GTS-45W】 IP45
Installation example of exhaust fan
(Fan is option)
Application
Please use it as 『ventilating louver』 for cubicle,power board etc.
to be set up under the outdoor location where is exposed to
the elements and also the weather conditions are harsh.
Features
1)
Having international code equivalent of conventional product,
we have achieved the significant down sizing for the depth
dimension of a louver. You can work for the space-saving.
2)
Thanks to the effect of inner parts, as filter surface is hard to
be exposed to the lements, ventilation capacity of inside filter
shall not be lowered by the water screen even in the rain.
3)
Service maintenance of filter can be done from the front.
4)
It is possible to mount a fan with 160-degree at the back side of
Louver.
(Please use it as exhaust application when mounting a fan.)
Quality of material
Louver :
SUS304 t1.5 5Y7/1 coated.
Filter case :
SUS304 t1.2 5Y7/1 coated.
Inner parts :
Polypropylene
Dustproof filter :
Non-woven filter
※In case of displacement from the conventional
jet-proof type louver (Type G2-45BF).
Tap frame(option) is necessary.Tap frame model(G45BFS-WD)
Motion picture for waterproofing verification test on Newly released Power-full Jet-proof Type Thin Louver
This video picture is taken for the water invasion preventing function of the louver by the test result,
which it is shown clearly that the air can be going through the lover,itself by using smoke and
at the same time the water cannot be going the louver by the inner parts.
Whenever the jet water wil be sprinkled on the louver it cannot be going into the internal part
of the louver by the inner parts and as the result the inner filter will not be wet by satisfying the requirement of IP45.
And also the air pressure drop through the louver will not be recognized as well as the normal louver.
