New Product The salt-resistant thin type jet-proof louver P/N GTS-20W-ST with IP55 water-proof
Application
It can be used as the wind type louver for the cubicle and the electric panel board ,
installed in the sea coast area and others influenced by the salt pollution.
Features
1.
By having the same water protection level as the conventional one ,
the width of the thin type jet-proof louver has been deceased and the less spacing can be made.
2.

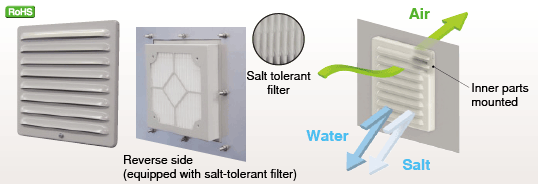

As the filter surface is not exposed to the wind and the rain by the effect of the inner parts ,
the ventilating ability of the filter can be maintained fully under raining.
3.
The maintenance works can be made easily from the front face side of the louver.
4.
The electrical fan with 160mm size can be attached at the back side of the louver.
Material
Louver :
SUS304 Thickness 1.5mm, 5Y7/1 painting.
Opening area : 125cm2
Filter casing :
SUS304 Thickness 1.2mm, 5Y7/1 painting.
Inner parts :
Polypropylene
Filter :
Salt-resistant filter(salt capture rate:90%)
For the exchange of
the filter medium: P/N GTS20-FST
Waterproof packing:
CRsponge
250
250
138.5
210
210
235
235
113.5
113.5
113.5
113.5
(34.5)
20.5
8-Φ7
Panel cutting size
Panel cutting size
138.5
210
※In case of displacement from the conventional
jet-proof type louver (Type G2-20BF).
Tap frame(option) is necessary.Tap frame model(G20BFS-WD)
Motion picture of waterproof verification video(In-house operation)
(Please click the play button)
※Louver being used for the verification is GTS-20W(Low profile jet-proof type).
This video picture is taken for the purpose of allowing air to pass through and
verifying
the evidence to defend against an invasion of water by using the smoke generator and shower.
Whatever someone sprinkles with water just obliquely upward,it does’t get water toward
the inner part of the louvre. As inner filter of louvre does’t get wet,you can get air into the louvre
without increasing pressure damage and it has a performance of IP55 water-proof
New Product The salt-resistant thin type jet-proof louver P/N GTS-45W-ST with IP55 water-proof
Application
It can be used as the wind type louver for the cubicle and the electric panel board , installed in the sea coast area and others influenced by the salt pollution.
Features
1.
By having the same water protection level as the conventional one , the width of the thin type jet-proof louver has been deceased and the less spacing can be made.
2.

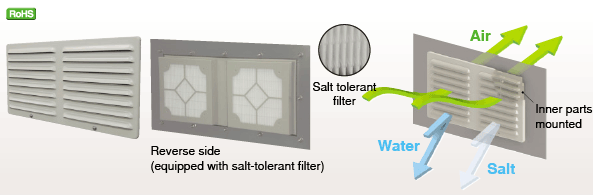

As the filter surface is not exposed to the wind and the rain by the effect of the inner parts , the ventilating ability of the filter can be maintained fully under raining.
3.
The maintenance works can be made easily from the front face side of the louver.
4.
The electrical fan with 160mm size can be attached at the back side of the louver.
Material
Louver :
SUS304 Thickness 1.5mm, 5Y7/1 painting.
Opening area : 250cm2
Filter casing :
SUS304 Thickness 1.2mm, 5Y7/1 painting.
Inner parts :
Polypropylene
Filter :
Salt-resistant filter(salt capture rate:90%)
For the exchange of
the filter medium: P/N GTS45-FST
Waterproof
packing:
CRsponge
250
500
138.5
138.5
119.5
119
485
235
210
113.5
113.5
465
119.5
138.5
12-φ7
(34.5)
12-M6×15
20.5
119
8-M5
Panel cutting size
Panel cutting size
4-R10
※In case of displacement from the conventional
jet-proof type louver (Type G2-45BF).
Tap frame(option) is necessary.Tap frame model(G45BFS-WD)
Motion picture of waterproof verification video(In-house operation)
(Please click the play button)
※Louver being used for the verification is GTS-20W(Low profile jet-proof type).
This video picture is taken for the purpose of allowing air to pass through and
verifying
the evidence to defend against an invasion of water by using the smoke generator and shower.
Whatever someone sprinkles with water just obliquely upward,it does’t get water toward
the inner part of the louvre. As inner filter of louvre does’t get wet,you can get air into the louvre
without increasing pressure damage and it has a performance of IP55 water-proof
