TOP ProductLouverDouble structure type louver |
|
| Double structure type louver ( Powerful water proof type ) IP45 |
This double structure louver is constructed with two single louvers with upward and downward direction of the air inlet and the antirust painting is in compliance with RoHS requirement.
 |
|
|
|
| Application |
The product can be used for the distribution board, control board, operation board and the cubicle as the component of panel opening. ( IP45 requirement satisfied.) |
| Features |
1) The panel opening area, 148 cm2 can be ensured for the outdoor type with blow prevention cover.
2) The manual processing for panel opening will not be needed compared to the normal type and the labor saving can be also made sharply. And the additional ventilation opening can be made easily.
3) The combination of the backside louver and the blow prevention cover can make good water-proof performance and satisfy the requirement of water proof test in accordance with JIC C 4620 and JIS C 0920 (IP45).
4) The stainless steel type louver can be provided, if requested. |
|

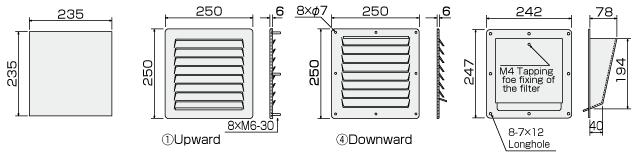

Specification:
Set parts list of G2-201WD
|
|
Parts Name |
Material |
Remarks |
@ |
Upward direction ventilating louver |
Steel plate
2.3mm thick |
Surface finishing
Antirust painting |
Stainless steel
1.5mm thick |
hairline finishing |
A |
Water-proof packing for the body |
Neoprence
sponge rubbe |
|
B |
Water proof packing for the back ventilating louver |
|
|
C |
Downward direction ventilating louver |
|
Surface finishing
Antirust painting
|
Stainless steel
1.5mm thick |
hairline finishing |
D |
Water-proof packing for the cover |
Neoprence
sponge rubbe |
|
E |
Blow prevention cover |
Steel plate
1.6mm thick |
Surface finishing
Antirust painting
|
F |
Dust-proof filter |
polypropylene |
Aluminum frame
included |
Note
1)Antitrust paint: Product P/N 050-4113 of ROCK PAINT Co., Ltd. Japan The special panting to the final coating can be provided, if necessary.
2)The clear painting for Stainless steel type can be provided, if requested.
3)The panel opening area means the panel cutting area of the front of a louver. |
|
|
G2-20IWD
Note: The specification of the products will be changed for the improvement before the information will be released. |
