TOP ProductHeater Thermostat |
|
| |
|

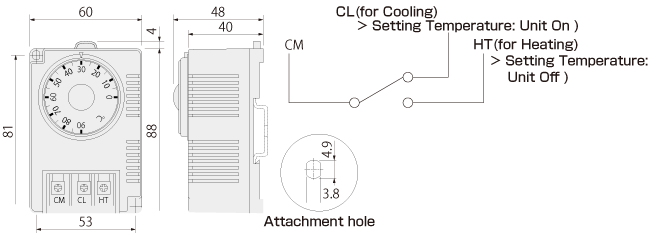

| Thermostat PTSC-090C |
|
|
It can be used for On-Off temperature control of the space heater, the ventilation fan and so on. |
|
It can be fixed on DIN Rail at the center of that. |
| Specification |
Temperature controlling range
|
0 to 90 |
Contact rating |
AC 200V 16A |
| Temperature Difference for Operation returned |
3 |
Insulating resistance |
100 MΆ
at DC 500 V |
| Withstand on-off switching times |
> 10,000 |
Withstand temperature |
130 |
| Weight |
125 g |
Dia of the terminal screw |
M3.5 |
Electrical withstand voltage between the terminals |
1500 V
1 min |
Packaging |
3 pcs.
in a box |
|
 |
|
|
| £PAGE TOP |
|
| Thermostat ITS-050L |
Example of the installation
|
|
Temperature controlling range
|
0 to 50 |
| Temperature Difference for Operation returned |
4 |
Lead wires coloring
Black
Red
Green |
Common
for Heating ( > Setting Temperature: Unit Off )
for Cooling ( > Setting Temperature: Unit On ) |
| Contact rating |
for Resistance load AC 250V 16A
for Induction load AC 250V 6A |
|
|
|
|
| £PAGE TOP |
|

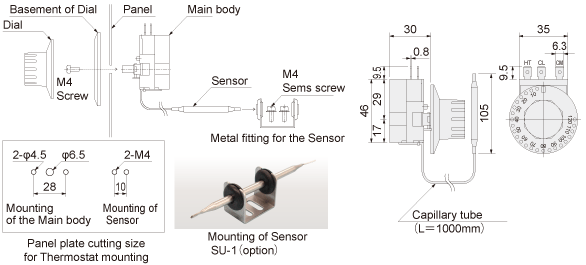

| Thermostat TS-120S |
|
|
It can be used for the electric power source control to the space heater, the ventilation fan and so on. |
|
1) The temperature can be set continuously from 0 to 120 by the dial.
2) As the capillary length of the sensor is 1 m, the dial of the controller can be installed outside of the panel board and the sensor part can also be set at the appropriate location of the panel board. |
| Specification |
Temperature controlling range |
|
| Temperature Difference for Operation returned |
|
| Weight |
|
| Contact rating |
for Resistance load AC 250V 16A
for Induction load AC 250V 6A |
| Insulating resistance |
|
Withstand voltage |
AC 1500V 1min to the ground. |
Temperature Setting |
for Heating ( > Setting Temperature: Unit Off )
for Cooling ( > Setting Temperature: Unit On ) |
| Withstand Switching times |
> 10,000 |
|
|
|
|
