Outer Cover attached Type Space Heater

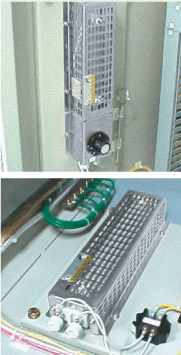

Example of the installation

Application

It is the cover attached type space heater and can be used for the prevention of dew condensation and of moisture in the electrical panel board and so on.

Features

1)The heater is covered with the punching steel plate, which is for the heat radiation and it can be easily fixed by the screws at two, or four positions of the space heater.
2) It is designed and manufactured for being safe as the heater itself cannot be touched directly.

Material

Heater	Bonderized steel plate, one kind of galvanized steel plate. ※Sus plate type heater can be supplied, if requested.
Outer cover	Punching steel plate ( 1.0 mm thickness ) with Trivalent chromate plating.※Sus punching plate can be supplied, if requested.
Terminal Cap	made of Ceramic ( with M5 screw )

※ Trivalent Chromate plating is used in view of Environment problem.

specifications

Electrical Specification	Rated AC Voltage 100V, or 200V　AC Withstand Test Voltage: 2000V 1 min.
Insulating Resistance	> 100MΩ at 500VDC

Important Notice
Do not use it over the rated voltage.
Use the heat resistant wires for the connection to the space heater.
Use the over current prevention equipment and the over-heating prevention equipment together.
Install the terminal position horizontally and lower against the heater.

OUTLINE

Standard Type

4 Position fixed Type	2 Position fixed Type	4 Position fixed Type with Thermal control unit

2 Position fixed Type with Thermal control unit	Terminal cover attached Type	Operation indicator attached Type

Standard Type
OH：Themostat attached type　TC：Terminal cover attached type　LED：Operation indicator attached Type

			OH	TC	LED	Part Number			OUT LINE
			OH	TC	LED	SPCC	HeaterSUS430	Heater SUS430/Cover SUS304	OUT LINE
R a t e V o l t a g e 110 Ｖ	30 Ｗ	４ p o s	-	-	-	SHC4-1103	-	-	A
			●	-	-	SHC4-1103-OH	-	-	B
			-	●	-	SHC4-1103-TC	-	-	C
			-	-	●	SHC4-1103-LED	-	-	D
			●	●	-	SHC4-1103-OH-TC	-	-	E
		2 p o s	-	-	-	SHC2-1103	-	-	F
			●	-	-	SHC2-1103-OH	-	-	G
			-	●	-	SHC2-1103-TC	-	-	H
			●	●	-	SHC2-1103-OH-TC	-	-	I
	50 Ｗ	４ p o s	-	-	-	SHC4-1105	SHC4-1105S	SHC4-1105AS	A
			●	-	-	SHC4-1105-OH	SHC4-1105S-OH	SHC4-1105AS-OH	B
			-	●	-	SHC4-1105-TC	SHC4-1105S-TC	SHC4-1105AS-TCS	C
			-	-	●	SHC4-1105-LED	SHC4-1105S-LED	SHC4-1105AS-LED	D
			●	●	-	SHC4-1105-OH-TC	SHC4-1105S-OH-TC	SHC4-1105AS-OH-TCS	E
		2 p o s	-	-	-	SHC2-1105	SHC2-1105S	SHC2-1105AS	F
			●	-	-	SHC2-1105-OH	SHC2-1105S-OH	SHC2-1105AS-OH	G
			-	●	-	SHC2-1105-TC	SHC2-1105S-TC	SHC2-1105AS-TCS	H
			●	●	-	SHC2-1105-OH-TC	SHC2-1105S-OH-TC	SHC2-1105AS-OH-TCS	I
	100 Ｗ	４ p o s	-	-	-	SHC4-1110	SHC4-1110S	SHC4-1110AS	A
			●	-	-	SHC4-1110-OH	SHC4-1110S-OH	SHC4-11100AS-OH	B
			-	●	-	SHC4-1110-TC	SHC4-1110S-TC	SHC4-1110AS-TCS	C
			-	-	●	SHC4-1110-LED	SHC4-1110S-LED	SHC4-1110AS-LED	D
			●	●	-	SHC4-1110-OH-TC	SHC4-1110S-OH-TC	SHC4-1110AS-OH-TCS	E
		2 p o s	-	-	-	SHC2-1110	SHC2-1110S	SHC2-1110AS	F
			●	-	-	SHC2-1110-OH	SHC2-1110S-OH	SHC2-1110AS-OH	G
			-	●	-	SHC2-1110-TC	SHC2-1110S-TC	SHC2-1110AS-TCS	H
			●	●	-	SHC2-1110-OH-TC	SHC2-1110S-OH-TC	SHC2-1110AS-OH-TCS	I
	200 Ｗ	４ p o s	-	-	-	SHC4-1120	SHC4-1120S	SHC4-1120AS	A
			●	-	-	SHC4-1120-OH	SHC4-1120S-OH	SHC4-1120AS-OH	B
			-	●	-	SHC4-1120-TC	SHC4-1120S-TC	SHC4-1120AS-TCS	C
			-	-	●	SHC4-1120-LED	SHC4-1120S-LED	SHC4-1120AS-LED	D
			●	●	-	SHC4-1120-OH-TC	SHC4-1120S-OH-TC	SHC4-1120AS-OH-TCS	E
		2 p o s	-	-	-	SHC2-1120	SHC2-1120S	SHC2-1120AS	F
			●	-	-	SHC2-1120-OH	SHC2-1120S-OH	SHC2-1120AS-OH	G
			-	●	-	SHC2-1120-TC	SHC2-1120S-TC	SHC2-1120AS-TCS	H
			●	●	-	SHC2-1120-OH-TC	SHC2-1120S-OH-TC	SHC2-1120AS-OH-TCS	I
R a t e V o l t a g e 22 0 V	50 Ｗ	４ p o s	-	-	-	SHC4-2205	SHC4-2205S	SHC4-2205AS	A
			●	-	-	SHC4-2205-OH	SHC4-2205S-OH	SHC4-2205S-OH	B
			-	●	-	SHC4-2205-TC	SHC4-2205S-TC	SHC4-2205AS-TCS	C
			-	-	●	SHC4-2205-LED	SHC4-2205S-LED	SHC4-2205AS-LED	D
			●	●	-	SHC4-2205-OH-TC	SHC4-2205S-OH-TC	SHC4-2205AS-OH-TCS	E
		2 p o s	-	-	-	SHC2-2205	SHC2-2205S	SHC2-2205AS	F
			●	-	-	SHC2-2205-OH	SHC2-2205S-OH	SHC2-2205AS-OH	G
			-	●	-	SHC2-2205-TC	SHC2-2205S-TC	SHC2-2205AS-TCS	H
			●	●	-	SHC2-2205-OH-TC	SHC2-2205S-OH-TC	SHC2-2205AS-OH-TCS	I
	100 Ｗ	４ p o s	-	-	-	SHC4-2210	SHC4-2210S	SHC4-2210AS	A
			●	-	-	SHC4-2210-OH	SHC4-2210S-OH	SHC4-2210AS-OH	B
			-	●	-	SHC4-2210-TC	SHC4-2210S-TC	SHC4-2210AS-TCS	C
			-	-	●	SHC4-2210-LED	SHC4-2210S-LED	SHC4-2210AS-LED	D
			●	●	-	SHC4-2210-OH-TC	SHC4-2210S-OH-TC	SHC4-2210AS-OH-TCS	E
		2 p o s	-	-	-	SHC2-2210	SHC2-2210S	SHC2-2210AS	F
			●	-	-	SHC2-2210-OH	SHC2-2210S-OH	SHC2-2210AS-OH	G
			-	●	-	SHC2-2210-TC	SHC2-2210S-TC	SHC2-2210AS-TCS	H
			●	●	-	SHC2-2210-OH-TC	SHC2-2210S-OH-TC	SHC2-2210AS-OH-TCS	I
	200 Ｗ	４ p o s	-	-	-	SHC4-2220	SHC4-2220S	SHC4-2220AS	A
			●	-	-	SHC4-2220-OH	SHC4-2220S-OH	SHC4-2220AS-OH	B
			-	●	-	SHC4-2220-TC	SHC4-2220S-TC	SHC4-2220AS-TCS	C
			-	-	●	SHC4-2220-LED	SHC4-2220S-LED	SHC4-2220AS-LED	D
			●	●	-	SHC4-2220-OH-TC	SHC4-2220S-OH-TC	SHC4-2220AS-OH-TCS	E
		2 p o s	-	-	-	SHC2-2220	SHC2-2220S	SHC2-2220AS	F
			●	-	-	SHC2-2220-OH	SHC2-2220S-OH	SHC2-2220AS-OH	G
			-	●	-	SHC2-2220-TC	SHC2-2220S-TC	SHC2-2220AS-TCS	H
			●	●	-	SHC2-2220-OH-TC	SHC2-2220S-OH-TC	SHC2-2220AS-OH-TCS	I

Notice : Do not use the heaters in the hazardous atmosphere such as in the flammable gas atmosphere Handle the heater with the care and attention as there will be the risk for a skin burn.
The specification of the product will be changed without any notice for the improvement.
