TOP ProductHeater Space Heater Minimum Type |
|
| |
|
| Space Heater Minimum Type |

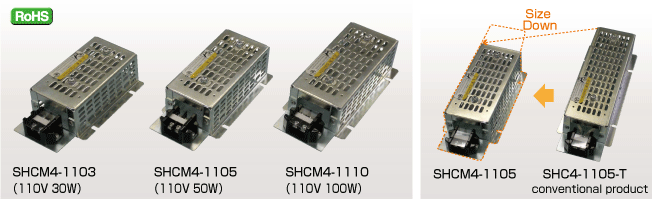

Space Saving Design and Good for the small panel board
30% space saving can be done in comparison with the standard type for 50W Type heater.
|
|
It can be used as the heater foe the dew condensation prevention and the moisture prevention at the panel board and so on. |
|
1) The big space saving can be done in comparison with the standard type and it is good for the small control panel and the small operation board.
2) The space saving can be done for the various electrical board,too.
3)
It is designed not to be touch to the heater directly by having the punching steel plate cover.
4) The wire-connection terminal block is equipped as the standard and the wires can be connected easily.
|
|
Part Number |
L |
P |
Heater
Rating |
Heater Plate
Material |
Heater Cover
Material |
| SHCM4-1103 |
130 |
80 |
110V
30W |
SEHC |
SPCC |
| SHCM4-1103S |
SUS430 |
SPCC |
| SHCM4-1103AS |
SUS430 |
SUS304 |
| SHCM4-1105 |
145 |
95 |
110V
50W |
SEHC |
SPCC |
| SHCM4-1105S |
SUS430 |
SPCC |
| SHCM4-1105AS |
SUS430 |
SUS304 |
| SHCM4-1110 |
160 |
110 |
110V
100W |
SEHC |
SPCC |
| SHCM4-1110S |
SUS430 |
SPCC |
| SHCM4-1110AS |
SUS430 |
SUS304 |
|
 |
Important Notice
Do not use it over the rated voltage.
Use the heat resistant wires for the connection to the space heater.
Use the over current prevention equipment and the over-heating prevention equipment together.
Install the terminal position horizontally and lower against the heater. |
|
| £PAGE TOP |
|

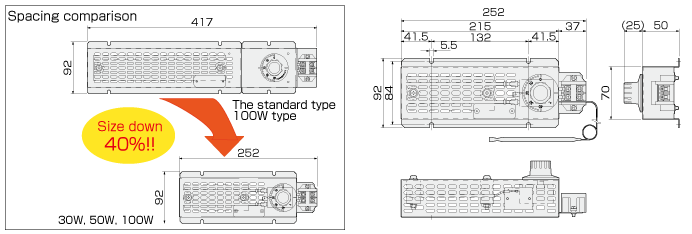

| Space Heater Minimum Type with Thermostat |
| Space Saving Design and Good for the small panel board |
|
|
It can be used as the heater foe the dew condensation prevention and the moisture prevention at the panel board and so on. |
|
1) The big space saving can be done in comparison with the standard type and it is good for the small control panel and the small operation board.
2) The space saving can be done for the various electrical board,too.
3)
It is designed not to be touch to the heater directly by having the punching steel plate cover.
4) The wire-connection terminal block is equipped as the standard and the wires can be connected easily.
|
|
Part Nu,ber |
Heater Rating |
Heater Plate Material |
Heater Cover Material |
SHCM4-1103-OH
|
110V 30W
|
SEHC |
|
| SHCM4-1105-OH |
110V 50W
|
SEHC |
SPCC
|
| SHCM4-1110-OH |
110V 100W
|
SEHC |
SPCC
|
Important Notice
Do not use it over the rated voltage.
Use the heat resistant wires for the connection to the space heater.
Use the over current prevention equipment and the over-heating prevention equipment together.
Install the terminal position horizontally and lower against the heater. |
|
