Round shaped Metal Supporter

Application

It can be used to adjust the height of instrument mounting at the panel board.

Features

1) Two metal supporters can be connected in order to adjust the height of instrument mounting up to 120 mm, or 150 mm height.
2) The precise height adjustment such as 1 mm, or 2 mm can be made with a washer.
It can be fastened by wrenches.
3) Minus shaped slot is provided at the top of the supporter to fasten with a screw driver.

Materials

Rust resistant Trivalent Chromate plating steel

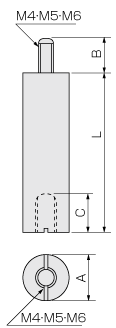

	Part Number	L （mm）	A （Φ）	B （mm）	C （mm）	Package quantity
M4	MP-4-20	20	Φ8	10	12	300
	MP-4-25	25				300
	MP-4-30	30				300
	MP-4-40	40				200
	MP-4-50	50				200
	MP-4-60	60				200
	MP-4-100	100				100
M5	MP-5-20	20	Φ10	13	15	200
	MP-5-25	25				200
	MP-5-30	30				100
	MP-5-40	40				100
	MP-5-50	50				100
	MP-5-60	60				100
	MP-5-100	100				50
M6	MP-6-20	20	Φ11	15	16	200
	MP-6-25	25				200
	MP-6-30	30				100
	MP-6-40	40				100
	MP-6-50	50				100
	MP-6-60	60				100
	MP-6-100	100				50

▲PAGE TOP

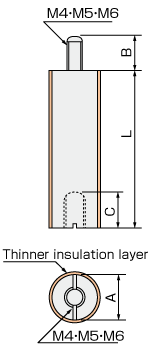

Surface insulating Type Round shaped Metal Supporter(Minus type slot)

Application

It can be used for the place where the conductor may be touched to a metal supporter.

Features

Metal supporter with grey colored insulating thermal shrinkable tube on the surface.
Insulation thickness of the tube is 0.07 mm for M5 size supporter and 0.1 mm for M6 size supporter respectively.

Materials

Trivalent Chromate plating steel with PVC thermal shrinkable tube

	Part Number	L	A	B	C	Package quantity
M4	IMP-4-20	20	Φ8	10	12	300
	IMP-4-25	25				300
	IMP-4-30	30				300
	IMP-4-40	40				200
	IMP-4-50	50				200
	IMP-4-60	60				200
	IMP-4-100	100				100
M5	IMP-5-20	20	Φ10	13	15	200
	IMP-5-25	25				200
	IMP-5-30	30				100
	IMP-5-40	40				100
	IMP-5-50	50				100
	IMP-5-60	60				100
	IMP-5-100	100				50
M6	IMP-6-20	20	Φ11	15	16	200
	IMP-6-25	25				200
	IMP-6-30	30				100
	IMP-6-40	40				100
	IMP-6-50	50				100
	IMP-6-60	60				100
	IMP-6-100	100				50

▲PAGE TOP

Surface insulating Type Round shaped Metal Supporter(Plus type slot)

	Part Number	L	A	B	C	Package quantity
M4	IMPX-4-20	20	Φ8	10	12	300
	IMPX-4-25	25				300
	IMPX-4-30	30				300
	IMPX-4-40	40				200
	IMPX-4-50	50				200
	IMPX-4-60	60				200
	IMPX-4-100	100				100
M5	IMPX-5-20	20	Φ10	13	15	200
	IMPX-5-25	25				200
	IMPX-5-30	30				100
	IMPX-5-40	40				100
	IMPX-5-50	50				100
	IMPX-5-60	60				100
	IMPX-5-100	100				50

▲PAGE TOP
