TOP ＞Product＞Metal Supporter ＞Polyacetal resin/ABS resin/Nut / Black colored PP resin Supporter |
|
| |
|
| Polyacetal resin Spacer |
|
|
It can be used for the attachment of Printing boards, Connectors, Acrylic covers and so on at the panel board. |
|
Easy treatment with good insulation property and light weight, both metal |
Materials |
Body: Plolyacetal resin ( Brand name:Duracon ) , color : Milky-white
Screw part: Nickel plating brass |
|
Mounting height
L(mm) |

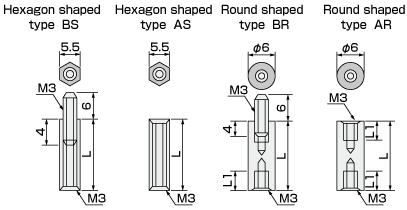

Hexagon shaped type |
Round shaped type |
Part Number |
Part Number |
L1 |
Part Number |
L1 |
|
BS-308E |
AS-308 |
BR-308E |
4 |
AR-308 |
Fully threades screw |
10 |
|
AS-310 |
|
6 |
AR-310 |
Fully threades screw |
12 |
|
AS-312 |
|
8 |
AR-312 |
Fully threades screw |
15 |
|
AS-315 |
|
11 |
AR-315 |
Fully threades screw |
20 |
|
AS-320 |
|
16 |
AR-320 |
Fully threades screw |
25 |
|
AS-325 |
|
21 |
AR-325 |
Fully threades screw |
30 |
|
AS-330 |
|
6 |
AR-330 |
6 |
35 |
BS-335E |
AS-335 |
BR-335E |
6 |
AR-335 |
6 |
40 |
BS-340E |
AS-340 |
BR-340E |
6 |
AR-340 |
6 |
45 |
BS-345E |
AS-345 |
BR-345E |
6 |
AR-345 |
6 |
50 |
BS-350E |
AS-350 |
BR-350E |
6 |
AR-350 |
6 |
|
|
| ▲PAGE TOP |
|
| ABS resin Supporter(for Low voltage use) |
|
|
It can be used for the attachment of printing boards, protective covers and so on as the insulating supporter. |
|
1) Good insulating, fire-resistant property and Light weight
2) Tapping can be provided easily for fastening as there is a through hole in the center of the supporter
3) Optional length of the supporter can be obtained by cutting freely and it can be economical with lesser losses.
4) No emission of hazardous gases such as CO2 and ecological product |
Materials |
Fire-resistant ABS resi |
|
 |
Part Number |
Inner Diameter
(mm) |
Outer
Diameter
(mm) |
Length
(mm) |
Package quantity |
Small box |
Large box |
PSM-4-40 |
4.4 |
12 |
|
150 |
|
|
|
100 |
|
PSM-4-60 |
|
100 |
|
PSM-4-100 |
|
50 |
|
PSM-4-150 |
|
40 |
|
PSM-4* |
|
|
|
PSM-8* |
|
12 |
|
|
|
*Standard length |
|
| ▲PAGE TOP |
|
| Nut Supporter |
|
 Part Number
|
Inter thread |
A |
B |
L |
Package quantity |
|
M5-M4 |
10φ
|
10
|
30 |
200 |
|
M5-M4 |
10φ
|
10 |
40 |
200 |
|
M8-M6 |
12φ
|
10 |
30 |
100 |
|
M8-M6 |
12φ
|
10 |
40 |
100 |
|
M8-M6 |
12φ
|
10 |
50 |
100 |
|
|
It can be used for adjusting the attachment height to mount instrument at the panel board and used as the nut of height adjustment supporter.
|
|
Different size thread cutting is provided at both end such as M5-M4 and M8-M6 combinations. |
Materials |
Trivalent Chromate plating stee |
|
|
| ▲PAGE TOP |
|
| Black colored PP resin Supporter |
|
Part Number
|
Ｌ |
Diameter |
Inter thread |
Package quantity |
KSR-15-B |
15 |
8.5φ
|
M3 |
100pcs
10000pcs |
|
20 |
8.5φ
|
M3 |
KSR-25-B |
25 |
8.5φ
|
M3 |
KSR-30-B |
30 |
8.5φ
|
M3 |
KSR-35-B |
35 |
8.5φ
|
M3 |
|
|
It can be used as the insulating supporter. |
|
1) Good insulating property
2) Satisfy the withstand voltage test, AC 4000V 1min |
Materials |
Black colored PP resin with two M3 brass screw
|
|
|
