TOP ＞Product＞Metal Supporter ＞Adjustable Bolt/Nut |
|
| |
|
| Adjustable Bolt |
|
|
Bolt for adjusting the attachment height of instrumen. |
|
1) The height adjustment of the surface plate can be made by fastening the bolt.
2) Good appearance by using the decorative screws |
Materials |
Bolt with a collar : Trivalent Chromate plating steel
Hexagon box nut : Trivalent Chromate plating steel |
 Part Number |
Diameter of screw |
R |
A |
B |
dφ |
Package quantity |
AJB-4
|
|
26.5 |
5 |
20 |
8 |
|
| AJB-5 |
M5
|
27.5 |
6 |
20 |
10 |
300 |
| AJB-6 |
M6
|
28.5 |
7 |
20 |
12 |
100 |
| AJB-8 |
M8
|
35.5 |
9 |
25 |
15 |
100 |
|
|
| ▲PAGE TOP |
|

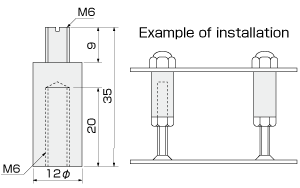

| Adjustable Nut |
|
|
Nut type is also provided and it is convenient for the adjustment of attaching instruments and also the surface plate, the decorative plate and the insulation plate |
|
It is convenient to use it with flush cut bolt as a set |
Materials |
Trivalent Chromate plating stee |
|
| Part Number
|
Package quantity |
| AJN-6-35 |
100 |
|
| |
 |
|
