Supporter (Low voltage insulated Supporter to the Conductor )
|
 |
|
It can be used as the insulating supporter for mounting instruments to Distribution Panel Board, Control Board, Rectifier Board, and the wiring of Bus bars and Wires. The distribution metal will be attached to the top of the supporter, then it can be used as the distribution stand |
|
1)Two sided nut (S,T and D Type) and Nut and Bolt ( SB,TB and DB
Type) are prepared and those are can be selected for the application.
2)Insulating property are excellent as the creeping flush over voltage of the insulating supporter is more than 2.5 kV AC 1 min.
It is light weight and is not easily broken. |
Material |
| Polypropylene (Black color) |
|
※The fixing torque of screw terminal of wiring accessories in acccordance with JIS-C-8306
Nominal diameter for screw terminal(mm) |
4 |
5 |
6 |
|
| The fixing torqueN・m（kgf・cm） |
1.2(12) |
2.0(20) |
2.5(25) |
5.5(55) |
|
|
| ▲PAGE TOP |
|

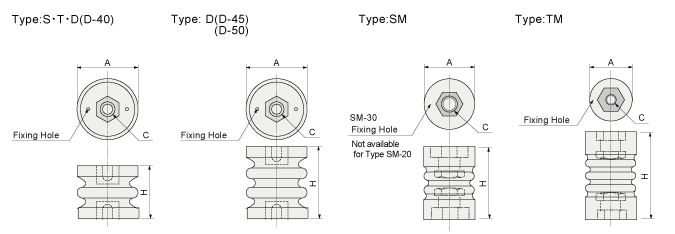

Two side nut Type : S・T・D・SM・TM
|
Example of installation
|
Part Number |
H
（mm） |
A
（φ） |
C×Effective
depth(mm) |
Package quantity |
| SM-20-4 |
20 |
15 |
M4×5.5
|
50 pcs for bag
500 pcs for box |
| SM-20-5 |
20 |
15 |
M5×5.5 |
| SM-30 |
30 |
25 |
M6 × 8 |
S-20-4
|
20 |
20 |
M4×5.5
|
| S-20-5 |
20 |
20 |
M5×5.5 |
S-20-6
|
20 |
20 |
M6×5.5 |
| S-24 |
24 |
20 |
M6×5.5 |
| S-25 |
25 |
25 |
M6 × 8 |
| T-30 |
30 |
30 |
M8×10 |
25 pcs for bag
300 pcs for box |
| T-35 |
35 |
35 |
M8×10 |
| TM-35 |
35 |
20 |
M5×8.5 |
| D-40 |
40 |
40 |
M8×11 |
| D-45 |
45 |
40 |
M8×11 |
25 pcs for bag
250 pcs for box |
| D-50 |
50 |
40 |
M8×11 |
Fire retardant Type
Part Number |
H
（mm） |
A
（φ） |
C×Effective
depth(mm) |
Package quantity |
| S-25-UB |
25 |
25 |
M6×8 |
50 |
| T-35-UB |
35 |
35 |
M8×10 |
25 |
| D-50-UB |
50 |
40 |
M8×11 |
25 |
|
 |
|
| ▲PAGE TOP |
|
Two side nut Type : SC
|
Example of installation
 |
|
It can be used as the insulating supporter for mounting instruments to Distribution Panel Board, Control Board, Rectifier Board, and the wiring of Bus bars and Wires. |
|
The diameter was unified into 20 phi and height arranged three kinds of 20mm,40mm,60mm.It is most suitable for the uneven support of the copper bus-bar. |
Materials |
Polypropylene (Black color) |
| Withstand voltage |
Longitudinal flush over voltage > 2.5 kV/min
Note: Cr(lll) mate finishing is used for the nuts and bolts in view
of the environmental deterioration. |
Part Number |
H
（mm） |
Package quantity |
| SC-20-5 |
20 |
50 pcs for bag
500 pcs for box |
| SC-40-5 |
40 |
| SC-60-5 |
60 |
|
|
| ▲PAGE TOP |
|
Nut and Bolt Type : SB・SMB・TB・DB
|
|
Part Number |
H
（mm） |
A
（φ） |
C×Effective
depth(mm) |
D×Effective
depth(mm) |
Package quantity |
SB-20
|
20 |
20 |
M6×5.5
|
M6×13 |
50 pcs for bag
500 pcs for box
|
| SB-20-4 |
20 |
20 |
M4×5.5 |
M4×11 |
| SB-20-5 |
20 |
20 |
M5× 5.5 |
M5×11 |
| SB-24 |
24 |
20 |
M6× 5.5 |
M6×11 |
| SB-25 |
25 |
25 |
M6× 8 |
M6×13 |
| SB-25-5 |
25 |
25 |
M5× 8.5 |
M5×11 |
| SB-25-L6 |
25 |
25 |
M6× 8 |
M6× 6 |
| TB-30 |
30 |
30 |
M8×10 |
M8×20 |
50 pcs for bag
500 pcs for box
|
TB-30-6
|
30 |
30 |
M6× 8 |
M6×13 |
TB-30-L13
|
30 |
30 |
M8×10 |
M8×13 |
| TB-35 |
35 |
35 |
M8×10 |
M8×20 |
| TB-35-6 |
35 |
35 |
M6× 8 |
M6×13 |
| TB-35-L8 |
35 |
35 |
M8×11 |
M8×8 |
| DB-40 |
40 |
40 |
M8×11 |
M8×20 |
| DB-45 |
45 |
40 |
M8×11 |
M8×20 |
25 pcs for bag
250 pcs for box
|
| DB-50 |
50 |
40 |
M8×11 |
M8×20 |
| DB-50-L8 |
50 |
40 |
M8×11 |
M8×8 |
|
|
