Specification of Sheathed Heater : SSH Type

Application

It has the thermal radiation cover over the sheathed heater and can be used for the dew condensation prevention and the moisture prevention at the panel board and so on.

Features

1) The total length of 200 W Heater Type is shortened and it is coped with the space saving.
2) The heater is covered with the punching steel plate for the thermal radiation and it can be fixed easily with screws at 4 points.

Materials

Heat source: Sheathed heater
Cover: Punching steel plate ( 1.0 mm thickness ) with Trivalent Chromate plating
Terminal: Ceramic ( M5 screw)

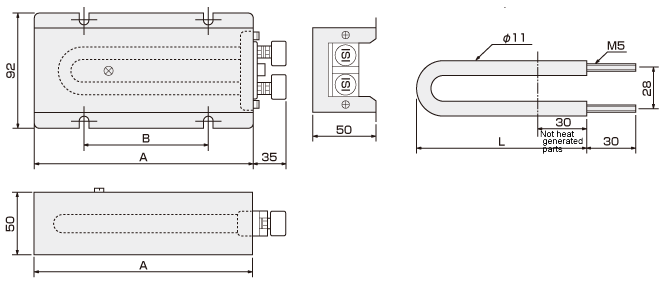

Standard Type

PartNumber	Capacity(W)	Ａ	Ｂ	L
SSH-1105	110V 50W	200	132	160
SSH-1110	110V 100W	280	202	200
SSH-1120	110V 200W	280	202	250
SSH-2215	220V 50W	280	202	250
SSH-2220	220V 200W	280	202	250

。

▲PAGE TOP

Space Heater

Application

It can be used for the dew condensation prevention and the moisture prevention at the panel board and it can be also used as the heating equipment and the open duct heater for drying.

Features

The thermal source is the heating metal alloy wires, which are wound over the mica plate and fixed, and is sealed by the galvanized steel plate ( Chrome free ),or the stainless steel plate.

Standard Type

PartNumber	Capacity(W)	Ａ	Ｂ	Ｃ	Ｄ	ｔ
SH-1105	110V 50W	170	152	38	22	5.0
SH-1105S
SH-1110	110V 100W	240	222	38	22	5.0
SH-1110S
SH-1120	110V 200W	390	372	38	22	5.0
SH-1120S
SH-2205	220V 50W	170	152	38	22	5.0
SH-2205S
SH-2210	220V 100W	240	222	38	22	5.0
SH-2210S
SH-2220	220V 200W	390	372	38	22	5.0
SH-2220S

Note:
1) The electrical power supply, AC 100V-110V and AC 200V-220V can be commonly used.
2) Last Suffix, S of P/N is meant as the stainless steel heater type and the normal types are the galvanized steel type.
When ordered, please clarify P/N with Suffix-S if needed.

Two ceramic bushings are mounted into the hole of the heater downward and upward and then the thermal and electrical insulation can be made completely.
The lead terminal has the ceramic cover as a set of the product.
