TOP ＞Product＞Earthing Product ＞Earth Terminal Block / Earth Terminal Block for Back side wiring

Earthing Product


Earth terminal	Earth terminal (fastening screw end type)	Green Bolt	Earth Terminal Block	Earth Terminal Block for Back side wiring

Earth Terminal Panel	Stud Type Earth Terminal Block	Stud Type Low Voltage Terminal Block

Earth Terminal Block

Installation example

Application

It can be used to measure the earth resistance of electrical instruments and electrical circuits and can also be used as the earth terminal block.

Features

1) The earth resistance can be easily measured to open the movable bar.
2) The earth resistance can be easily measured to connect each pole of EA, EB and ED.
3) Terminal block, which has two movable bars and is configured at two stages (AT-200W) can be provided according to the condition.
4) The colored basement of the block such as green or black can be provided, if requested.

Material

Basement	AT, AT-W Type: Reinforced polypropylene Green or, Black
Basement	ATF Type : polypropylene Black
Movable bar/ Fixed bar	Nickel plating copper
Bolt and Nut	AT,AT-W Type: Nickel plating brass
Bolt and Nut	ATF Type:Trivalent Chromate plating steel Butter fly nut is included.

Note: When used in parallel, the distance between two blocks shall be kept to 40 mm for AT-50,55mm for AT100/200W and 60 mm for AT-400W respectively.

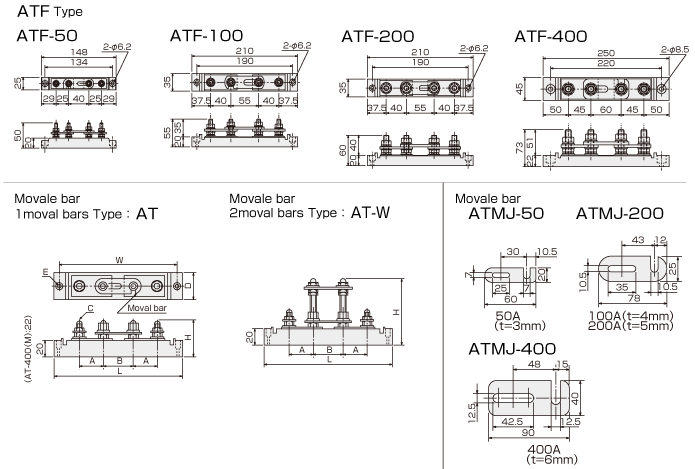

P/N	Capacity	L	W	A	B	D	H	C	E	Quantity of Packing
AT-50	50A	148	134	25	40	25	50	M6	φ6.2	30
AT-50M	50A	148	134	25	40	25	50	M6	φ6.2	30
AT-100	100A	210	190	40	55	35	55	M8	φ6.2	40
AT-100M	100A	210	190	40	55	35	55	M8	φ6.2	40
AT-200	200A	210	190	40	55	35	60	M10	φ6.2	40
AT-200M	200A	210	190	40	55	35	60	M10	φ6.2	40
AT-200W	200A	210	190	40	55	35	100	M10	φ6.2	1
AT-400	400A	250	220	45	60	45	73	M12	φ8.5	1
AT-400M	400A	250	220	45	60	45	73	M12	φ8.5	1

Example of installation:
Parallel grounding connection

▲PAGE TOP

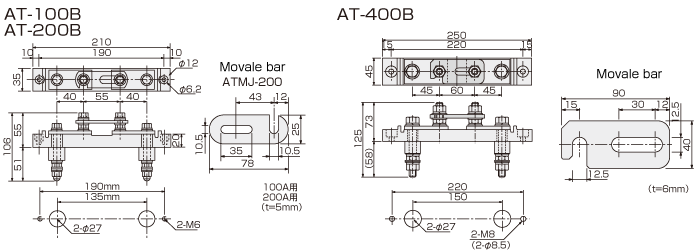

Earth Terminal Block for Back side wiring

Example of installation: Parallel grounding connection

Application

It can be used to measure the earth resistance of electrical instruments and electrical circuits.

Features

1) It can be easy to make wiring for the instruments set at back connection.
2) The earth resistance can be easily measured to open the movable bar.
3) The earth resistance can be easily measured by connecting each pole of T1, T2 and T3.

Material

Insulation bushing: Bakelite
Others: same as Earth Terminal Block

P/N	Capacity
AT-100B	100A
AT-200B	200A
AT-400B	400A
