TOP ＞Product＞Earthing Product ＞Earth Terminal Panel / Stud Type Earth Terminal Block

Earthing Product


Earth terminal	Earth terminal (fastening screw end type)	Green Bolt	Earth Terminal Block	Earth Terminal Block for Back side wiring

Earth Terminal Panel	Stud Type Earth Terminal Block	Stud Type Low Voltage Terminal Block

Earth Terminal Panel

Application

It can be used for the wiring to grounding circuits at Cubicles, Earth terminal boards.

Features

1) It is in compliance with the requirement of Cubicle Type Power Incoming Unit for Emergency Use, authorized by Japan Electrical Association.
2) 6 variation of the combination such as number of blocks, with or, without pen bar and test terminal can be selected according to the requirement. And Earth terminal block supplied by Shinohara Electric can be set up for the panel easily.

Material

Basement: SPC plate, 2.3 mm thickness with Munsell 5Y7/1 painting
Separator: Grey colored PVC plate

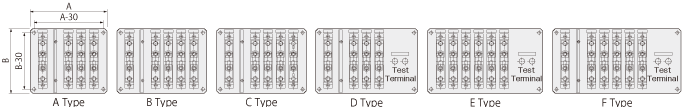

Type	Part Number	Current capacity (A)	Size of basement （A×B）	Attachment hole	Accessory
					Earth Terminal Block	Test Terminal	Separator	Remarks
A	PAT-50-A	50	250×200	4-φ9	4	-	with
	PAT-100-A	100	300×250
	PAT-200-A	200	300×250
B	PAT-50-B	50	290×200	4-φ9	5	-	with
	PAT-100-B	100	350×250
	PAT-200-B	200	350×250
C	PAT-50-C	50	290×200	4-φ9	5	-	with	with out moval bar
	PAT-100-C	100	350×250
	PAT-200-C	200	350×250
D	PAT-50-D	50	340×200	4-φ9	4	2	with
	PAT-100-D	100	400×250
	PAT-200-D	200	400×250
E	PAT-50-E	50	380×200	4-φ9	6	2	-
	PAT-100-E	100	450×250
	PAT-200-E	200	450×250
F	PAT-50-F	50	420×200	4-φ9	6	2	with
	PAT-100-F	100	500×250
	PAT-200-F	200	500×250

▲PAGE TOP

Stud Type Earth Terminal Block

Example of installation

Application

It can be used as the junction and distribution supporter to insulated wires and bus bars.

Features

1) No need for size change to the basement by using 3 bolts such as M6, M8 and M10.
2) Good insulating property, light weight and not easily broken
3) Green colored body can be provided, if requested. Last Alphabet M means Green colored body.

Material

Body: Reinforced polypropylene
Bolt and Nut: Nickel plating brass

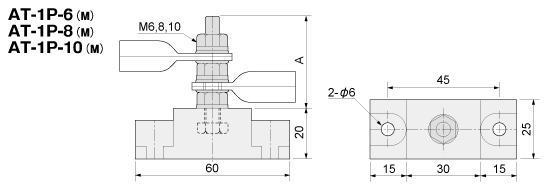

P/N	A	Rated Current	Quantity of Packing
AT-１P-6(M)	M6×36	60A	50
AT-１P-8(M)	M8×46	130A
AT-１P-10(M)	M10×56	240A

▲PAGE TOP

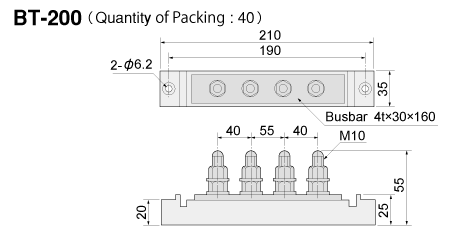

Stud Type Low Voltage Terminal Block

Features

1) The number of junction can be made up to 8 as the low voltage terminal block with the rated current, 200 A.
2) Withstand AC Voltage: 14 kV 1 min , Creepage distance: more than 20 mmlength

Material

Body: Reinforced polypropylene
Bolt and Nut: Nickel plating brass
