TOP ProductInstallation Products for Panel Board Spare parts Box E Decorative Screw |
Installation Products for Panel Board |
|
|
|
|

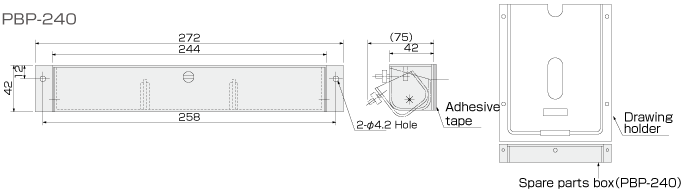

Spare Parts Box |

|
|
It can be used as the stored box for keeping the spare parts at the distribution, control, operation panel boards and cubicles inside. |
|
1) The stored parts can be seen easily from the outside as the box is transparent.
2) It can be easily opened to take the spare parts in and out with one touch opening structure.
3) It can be much better to use the drawing holder at the same time.
4) Two ways of the attachment with double sided adhesive tape, or screws can be selected.
5) Light weight and not easily broken |
Material |
Transparent ABS resin |
|
 |
|
£PAGE TOP |
|
Decorative Screw |

|
|
It can be used as the decorative screws for the panel boards. |
Material |
Bolt portion: Chromium plating SS34B
Head portion: Polycarbonate resin, black color, with the knurling surface of the plastic head |
|
‘KB-B-43@ |
‘KB-E-55  |
‘KB-C-60@ |
 |
 |
 |
Part Number
|
Package quantity |
KB-B-43 |
100
|
|
Part Number
|
Package quantity |
KB-E-55 |
100 |
|
Part Number
|
Package quantity |
KB-C-60 |
50E250
|
|
|
|
|
‘KB-N@ |
‘KB-NF-33 |
‘KB-H@ |

Bolt porton : C3602BD Nickel plaring
Head portion : ABS resin black color |

Bolt porton : C3602BD Nickel plaring
Head portion : ABS resin black color |

KB-H-35:Head portion:ABS resin
|
Part Number
|
L1 |
L2 |
L3 |
Package quantity |
KB-N-36 |
36 |
23 |
10 |
100 |
KB-N-51 |
51 |
38 |
15 |
500 |
KB-N-66 |
66 |
53 |
15 |
500 |
|
Part Number
|
Package quantity |
KB-NF-33 |
100
|
KB-NF-33HL |
100 |
|
Part Number
|
L1 |
L2 |
Package quantity |
KB-H-40 |
40 |
29 |
100
|
KB-H-35 |
35 |
24 |
100
|
KB-H-30 |
30 |
19 |
100
|
|
|
|
|
