It can be used to open and close the disconnecting switch at the electric circuit.

1) It can be in compliance with the requirement of JIS C 4510.
2) Good insulating property and humid-resistance as the plastic material is used.
3) Light weight and good operability
4) Yellow colored pipe as recognized as the warning coloration
5) Strong structure with 32 mm pipe diameter
Note: It is much easier to open and close the disconnecting switch at the electric circuit with FBK Type, which hook length is 38 mm and longer than that of FB Type.

Withstand AC voltage: 75 kV 5 min satisfied (with humid- resistance)
Insulation resistance: ＞2X10⁹Ω
Withstand Impulse Voltage：60 kV 3 times satisfied

Note:　Please grasp the rod at the position below the safety line indicated.
Please make the rod be cleaned up with dry cloth

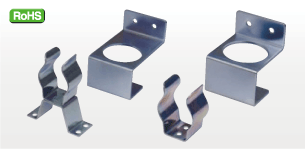

Please hang the rod at the dry ambient as shown in the example of installation
