Soft PVC Sheet
Adhesive
Aluminum foil

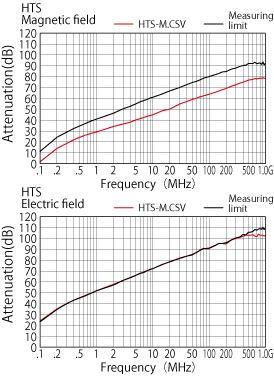

Measured by KEC Method
Note:The value is just measured value,not guarantied.
|
|
It can be used for bundling wires and wire harnesses, which are necessary for the
electromagnetic shielding to electronic , telecommunication and OA equipment. |
|
1) It is flexible and has good electromagnetic shielding effect such as 35 to 60 dB against
frequency range 50 to 1000 MHz
2) It can be cut freely in the length and it is much economical with lesser loss.
3) As the wires can be easily treated for bundling or unbundling, the design change of the wiring and the maintenance can be made freely and the distribution wires can be pulled out from any place |
Material |
| Sheet: |
Soft PVC sheet ( 300 μm ) glued with Aluminum foil ( 40 μm) |
| Hock button |
Polyacetal ( 50mm pitch length ) |
| Color |
Grey |
Note: Allowable temperature: Sheet 70 ℃、Hock button 70 ℃ |
Reel Type：Standard Specification
P/N |
Budling
size （φ） |
Sheet
width(mm) |
Standard Length(m) |
|
HTS-10
|
10 |
55 |
50 |
8 |
| HTS-15 |
15 |
75 |
50 |
6 |
| HTS-20 |
20 |
90 |
50 |
5 |
| HTS-25 |
25 |
100 |
50 |
5 |
| HTS-30 |
30 |
115 |
50 |
4 |
| HTS-40 |
40 |
145 |
50 |
3 |
| HTS-50 |
50 |
175 |
50 |
3 |
| HTS-70（Custom Orderr） |
70 |
245 |
50 |
2 |
HTS-80（Custom order）
|
80 |
275 |
50 |
2 |
HTS-100
|
100 |
340 |
50 |
1 |
|
|
