The temperature rise measurement
Mesh sheet
Convention sheet
Room temperature
TEMP
(℃)
Time(min)
|
Measuring the inner temperature of the tube,covering heating element Equivalent to 30watts in hook tube. |
|
|
Please use it for the various following purposes:
Line of flux for door crossover,Protection of wiring in the board,Tying bundling of various harness, Protection of the pipe. |
|
1)
|

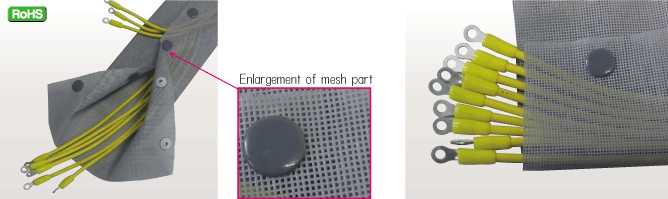

It will reduce the heat stay inside the hook tube by adopting the breathable mesh sheet. |
| 2) |
The work load before transportation,storage and usage will be
reduced because the weight of sheet part is one-third or less.(※The comparison with our model HTN .) |
| 3） |
The sheet part shall have the fire retardancy which is equivalent to UL94-VTM-0. |
|
Material |
| Sheet: |
The dipping processing of soft vinyl chloride resin.
(equivalent to UL94-VTM-0) |
| Hock button |
Polyacetal(50mm pitch) |
| Color |
Gray |
Note: Heat resiting temperature: Sheet 70 ℃、Hock button 70 ℃ |
Standard specification:Reel winding
Part Number |
Budling
size |
Sheet width
(mm) |
Specified
Length(m) |
|
| HTA-10 |
10 |
55 |
50 |
8 |
HTA-15
|
15 |
75 |
50 |
6 |
| HTA-20 |
20 |
90 |
50 |
5 |
| HTA-25 |
25 |
100 |
50 |
5 |
| HTA-30 |
30 |
115 |
50 |
4 |
| HTA-40 |
40 |
145 |
50 |
3 |
| HTA-50 |
50 |
175 |
50 |
3 |
|
|
