PP Resin Tupe Window Frame for Instrument PY Type IP55
|
|
|
1) Simple installation and good workability. No need for the holding plate compared to the usual products.
It can be set to the panel cut from the front side and fixed with the screws from the back side.
2) It can be used at outdoor with the water proof structure, IP55.
3) Weather resistant, good appearance and the value of the panel board can be increased. |
|
 |
|
Component Name |
Material Specification |
① |
Window frame |
PP with Cgloprene sponge rubber |
② |
Glass |
Metal wired glass ( 6.8 mm thick )
Tempered glass ( 6.0 mm thick ) |
③ |
Holding frame |
PP |
④ |
Flange nut |
M4 black color |
|
 |
PY Type Standard specification
Part Number |
Outer size
A×B |
Effective glass size
C×D |
Panel cutting size
E×F |
PY-1010A
|
138×138
|
100×100
|
127×127
|
| PY-1010K3 |
PY-1020A
|
138×238
|
100×200
|
127×227 |
| PY-1020K3 |
|
|
| Remarks for the use of PP resin Type Window frame for Instrument,PY Type |
| 1) |
Final no. of P/N
A means Metal wired glass 6.8 mm thick
K3 means Tempered glass 3.0 mm thick
At ordering, please make the glass grade according to P/N of the window frame such as PY-1010K3 |
| 2) |
Attachment Nuts shall be fixed firmly and uniformly with the suitable torque, 0.78 N・m(7.8 kgf・cm ) |
| 3) |
Suitable panel size 1.6-3.2mm thiclness |
|
|
|
|
PVC Resin Window Frame for Instrument PMY Type(INdoor Use)
|
| PVC Resin Window Frame for Instrument : PMY Type (INdoor Use) |
■ Example of the application
|
|
1) Simple installation. Make panel cutting and set it to the panel from the front side.And then, insert the plastic wedges to the frame from the back side.
2) Splash-proof structure, weather-proof and good appearance. And then the value of the panel can be increased. |
Component Name |
Material Specification |
| Window frame |
Polyvinylchloride resin(Black) |
| Glass |
Glass 1.9mm（G1）
Glass 3.0mm（G3）
Tempered glass 3.0mm（K3）
Acrylite 3.0mm（A2）
|
| Wedge |
PP resin |
 |

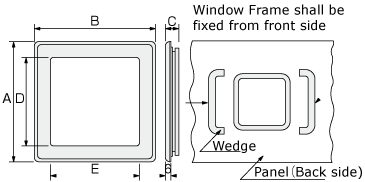

PMY Type Standard specification
Part Number |
Ａ |
Ｂ |
Ｃ |
Ｄ |
Ｅ |
Application |
Panel cutting siza |

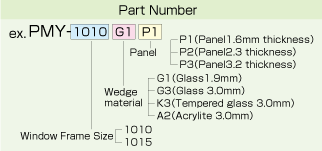

Part Number |
Package quantity |
PMY-1010
|
122 |
122 |
13 |
88 |
88 |
Electric light |
105×105
|
G1: Glass 1.9mm
G3: Glass 3.0mm
K3: Tempered glass 3.0mm
A2: Acrylite 3.0mm |
50 |
| PMY-1015 |
170 |
122 |
13 |
140 |
90 |
Single phase three wire powre source system |
105×155
|
 |
|
