| Remarks for the use of Aluminum window frame ,APY Type |
| 1) |
Final no. of P/N
A means Metal wired glass 6.8 mm thick
K means Tempred glass 5.0 mm thick
At ordering, please make the glass grade according to P/N of the window frame such as APY-2020-A or APY-2030K |
| 2) |
Attachment Nuts shall be fixed firmly and uniformly with the suitable torque, 1.5 N・m(15 kgf・cm ) |
|

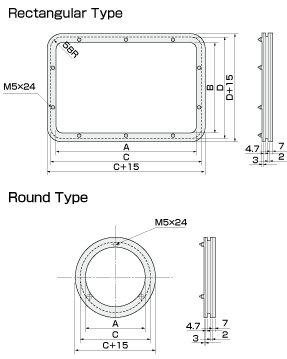

APY Type(Rectangle type) Standard specification
Part Number |
Effective size of the glass A×B |
Panel cutting size
C×D |
Weight
(kg) |
APY-2020A |
200×200 |
235×235（58R） |
1.0 |
APY-2020K |
200×200 |
235×235（58R） |
0.9 |
APY-2030A |
200×300 |
235×335（58R) |
1.4 |
APY-2030K |
200×300 |
235×335（58R) |
1.1 |
APY-3030A |
300×300 |
335×335（58R) |
2.0 |
APY-3030K |
300×300 |
335×335（58R) |
1.6 |
APY-4030A |
400×300 |
435×335（58R) |
2.8 |
APY-4030K |
400×300 |
435×335（58R) |
2.7 |
APY-4040A |
400×400 |
435×435（58R) |
3.5 |
APY-4040K |
400×400 |
435×435（58R) |
2.9 |
APY-5030A |
500×300 |
535×335（58R) |
3.4 |
APY-5030K |
500×300 |
535×335（58R) |
2.8 |
APY-5040A |
500×400 |
535×435（58R) |
4.5 |
APY-5040K |
500×400 |
535×435（58R) |
3.5 |
APY Type(Round type) Standard specification
Part Number |
Effective size of the glass φA |
Panel cutting size
φC |
Weight
(kg) |
APY-120A |
φ120 |
φ155 |
0.5 |
APY-120K |
φ120 |
φ155 |
0.4 |
|
Component Name |
Material Specification |
① |
Window frame |
Aluminum alloy 6.3 mm thick ( anodized aluminum ) |
② |
Glass |
Metal wired glass ( 6.8 mm thick )
Final no. of P/N [AT]
Tempered glass ( 5.0 mm thick )
Final no. of P/N [KT] |
③ |
Packing |
Neoprene rubber |
④ |
Holding frame |
Aluminum alloy |
⑤ |
Attachment bolt |
AY Type: M5 embedded bolt( Stainless steel bolt) |
⑥ |
Applicable panel |
Panel thickness : 2.0 - 3.2 mm
( 1.6 mm panel thickness can be used for indoor panel board.) |
|
