Metal Supporer for Distribution Board(With ornamental screw)

Application

It can be used for adjusting the height of intermediate plate as the attachment metal fitting

Features

The intermediate plate, decorative plate, will be attached to CP Type Supporter with screws and will be attached to UP Type Supporter at the opposite side. And it will make the attachment of intermediate plate simple and more rational. The height adjustment can be made from 64 mm to 250 mm freely

Materials

CP Type Supporter: Trivalent Chromate plating steel ①：2.3 mm and ②：3.2 mm thickness
UP Type Supporter: Trivalent Chromate plating steel ③：3.2 mm and ④：2.3 mm thickness

Note : Withstand vertical loading strength with two CPs : 98 Kg

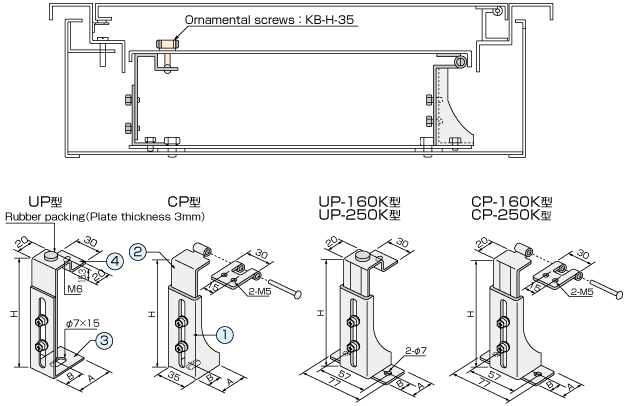

CP Type Supporter
Part Number	Min.height H	Max.height H	A	B	Package quantity
CP-80	64	77	25	14	100
CP-115	88	114	35	19	50
CP-160	117	160	35	19	50
CP-160K	117	160	35	19	50
CP-250K	160	250	35	19	50

UP Type Supporter
Part Number	Min.height H	Max.height H	A	B	Package quantity
UP-80	64	77	25	14	100
UP-115	88	114	35	19	50
UP-160	117	160	35	19	50
UP-160K	117	160	35	19	50
UP-250K	160	250	35	19	50

▲PAGE TOP

Flat Type Metal Supporter

Application

It can be used as a metal fittingfor adjusting the attachment height of instrument.

Features

The precise height adjustment can be made simply after temporary attachment

Materials

Trivalent Chromate plating steel with PVC thermal shrinkable tube

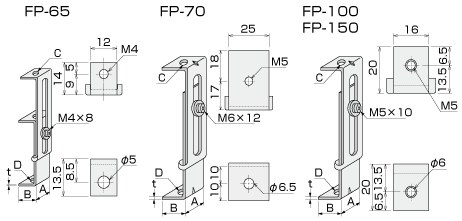

Part Number Each Size	FP-65	FP-70	FP-100	FP-150
