Metal Supporter


Hexagon shaped Metal Supporter	Surface insulating Type Hexagon shaped Metal Supporter	Round shaped Metal Supporter	Surface insulating Type Round shaped Metal Supporter
Hexagon shaped Metal Supporter	Surface insulating Type Hexagon shaped Metal Supporter	Round shaped Metal Supporter	Minus type slot	Plus type slot

Short Length Type Metal Supporter	Polyacetal resin Spacer	ABS resin Supporter	Nut Supporter	Black colored PP resin Supporter

Flat Type Metal Supporter	Metal Supporter for Distribution Board	Adjustable Nut	Adjustable Bolt

Hexagon shaped Metal Supporter

Example of installation
Hexagon shaped Metal Supporter

Application

It can be used to adjust the height of instrument mounting at the panel board

Features

Two metal supporters can be connected in order to adjust the height of instrument mounting up to 120 mm, or 150 mm height.
The precise height adjustment such as 1 mm, or 2 mm can be made with a washer. It can be fastened by wrenches

Materials

Rust resistant Trivalent Chromate plating steel

	Part Number	L	A	B	C	Package quantity
M3	HP-3-20	20	6	7	10	500
	HP-3-25	25				300
	HP-3-30	30				300
	HP-3-40	40				200
M4	HP-4-20	20	7	10	12	500
	HP-4-25	25				300
	HP-4-30	30				300
	HP-4-40	40				200
	HP-4-50	50				200
	HP-4-60	60				200
	HP-4-100	100				100
M5	HP-5-20	20	8	13	15	300
	HP-5-25	25				300
	HP-5-30	30				200
	HP-5-40	40				200
	HP-5-50	50				200
	HP-5-60	60				100
	HP-5-100	100				100
M6	HP-6-20	20	10	15	16	200
	HP-6-25	25				200
	HP-6-30	30				100
	HP-6-40	40				100
	HP-6-50	50				100
	HP-6-60	60				100
	HP-6-70	70				50
	HP-6-75	75				50
	HP-6-80	80				50
	HP-6-90	90				50
	HP-6-100	100				50

▲PAGE TOP

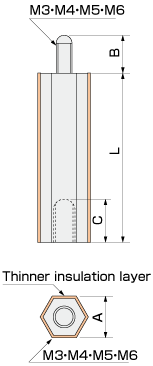

Surface insulating Type Hexagon shaped Metal Supporter

Application

It can be used for the place where the conductor may be touched to a metal supporter

Features

Metal supporter with grey colored insulating thermal shrinkable tube on the surface.
Insulation thickness of the tube is 0.07 mm for M5 size supporter and 0.1 mm for M6 size supporter respectively

Materials

Trivalent Chromate plating steel with PVC thermal shrinkable tube

	Part Number	L	A	B	C	Package quantity
M3	IHP-3-20	20	6	7	10	500
	IHP-3-25	25				300
	IIHP-3-30	30				300
	IHP-3-40	40				200
M4	IHP-4-20	20	7	10	12	500
	IHP-4-25	25				300
	IHP-4-30	30				300
	IHP-4-40	40				200
	IHP-4-50	50				200
	IHP-4-60	60				200
	IHP-4-100	100				100
M5	IHP-5-20	20	8	13	15	300
	IHP-5-25	25				300
	IHP-5-30	30				200
	IHP-5-40	40				200
	IHP-5-50	50				200
	IHP-5-60	60				100
	IHP-5-100	100				100
M6	IHP-6-20	20	10	15	16	200
	IHP-6-25	25				200
	IHP-6-30	30				100
	IHP-6-40	40				100
	IHP-6-50	50				100
	IHP-6-60	60				100
	IHP-6-70	70				50
	IHP-6-75	75				50
	IHP-6-80	80				50
	IHP-6-90	90				50
	IHP-6-100	100				50

▲PAGE TOP
