| Card holder (an adhesion stationary type and screw stop combined use) |
 |
|
Please use it for the face plate of a distribution board, a switchboard,
and an equipment board, and for the name tag a locker, and
an office machine, etc |
|
Since powerful double-face adhesive tape is stuck on the back, adhesive strength is very strong, and the trouble which carries out hole dawn and by which it builds a tap can be saved. An adhesion side is not made to corrode.
It is strong to temperature and humidity and easy to adapt itself also to some roughened surfaces. Screw attachment can also be used together. |
| Material |
It is powerful poly-urethane form to the back at the product made
from a plastic. Double-face adhesive tape (Sekisui Chemical #535) is stuck. |
P/No. |
A |
B |
C |
D |
F |
G(φ) |
E |
The number of packing |
| CH-C-1 |
66 |
36 |
59 |
31.5 |
25 |
3.5 |
6.0 |
50 pieces per one-bag
500pieces per one case |
| CH-C-2 |
46
|
25 |
40 |
21 |
25 |
3.5 |
5.0 |
100 pieces per one-bag
1000pieces per one case |
| CH-C-3 |
40 |
24.5 |
34.5 |
20.7 |
15 |
3.5 |
5.0 |
100 pieces per one-bag
1000pieces per one case |
| CH-C-4 |
31.5 |
22 |
25.5 |
18 |
15 |
3.5 |
4.5 |
100 pieces per one-bag
1000pieces per one case |
| CH-C-5 |
46 |
14.5 |
40.5 |
10.7 |
25 |
3.5 |
5.0 |
100 pieces per one-bag
1000pieces per one case |
| CH-C-6 |
31 |
14 |
25.5 |
10.7 |
15 |
3.5 |
5.0 |
100 pieces per one-bag
1000pieces per one case |
| CH-C-W |
58.5 |
23 |
52.5 |
18.5 |
25 |
3.5 |
5.5 |
100 pieces per one-bag
1000pieces per one case |
Cautions |
Please keep in mind that it cannot perform use of outdoor exposure. |
|
C
B
接着テープ
ガード
G(φ)
A
F
D
E
蓋
|
|
| ▲PAGE TOP |
|
| Cardholder(Continuous type) CH-D |
 |
Large laborsaving of pasting work can be attained for an integral type.
|
|
| Please use it for the face plate of a distribution board and a switchboard. |
|
1) Since it is an integral type, large laborsaving of pasting work
can be attained compared with the cardholder for every conventional piece.
2) You can use it, cutting freely along with an welding portion. |
| Material |
Welder welds hard PVC (transparent) on hard PVC (white)
(it is with double-stick tape to the back). |
●Sales unit-----20sheets

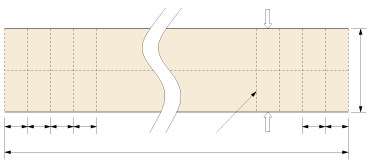

25
25
25
25
25
84
The direction of
a card plug.
Welder welding
25
◎There is a card maintenance part by 40 pieces per one sheet.
◎Conformity card size：19mmx39mm(※It is not attached to the card.)
|
※It can be cut along with an welding line.
■The example of use
|
|
| ▲PAGE TOP |
|
| Continuous system cardholder (A cover integral type and an opening-and-closing type) |
■Ten-piece continuous system
 |
Pasting work is easy because of ten-piece continuous system.
Since the cover is a hinge type, exchange of a face plate is very easy!
|
|
Please use it for the face plate of a distribution board, a switchboard, and
an instrumentation board and for the name tag of a locker and
an office machine, etc. |
|
1) The cardholder for two or more sets can be stuck at a time
to the breaker located in a line at intervals of 25 mm.
2) The V type slot is given to the right figure ☆ mark position,
and a required number can be easily separated by a cutter etc.
3) The cover was made into the opening-and-closing type in order to
aim at the prevention from loss and the improvement in workability in a cover. |
| Material |
| Polypropylene resin |
■Ten-piece continuous system
P/No. |
A
(mm)
|
B
(mm) |
C
(mm) |
Register paper
size (mm) |
Number of packing |
| CHR-3 |
40.2 |
78 |
15 |
20×34 |
10pcs. per one bag |
| CHR-W |
58.2
|
114 |
25 |
20×52 |
10pcs. per one bag |
■Single type
P/No. |
A
(mm) |
B
(mm) |
C
(mm) |
Register paper
size (mm) |
Number of packing |
| CHR-3-S1 |
40.2 |
78 |
15 |
20×34 |
100pcs. per one bag |
| CHR-W-S1 |
58.2
|
114 |
25 |
20×52 |
100pcs. per one bag |
※Since it becomes a cause of an adhesive power fall,
please stick after removing dirt and oil of a pasting side.
※Under continuous high temperature environment used as 70℃ or more,
use by field exposure cannot be performed.
25
25
25
25
25
25
25
25

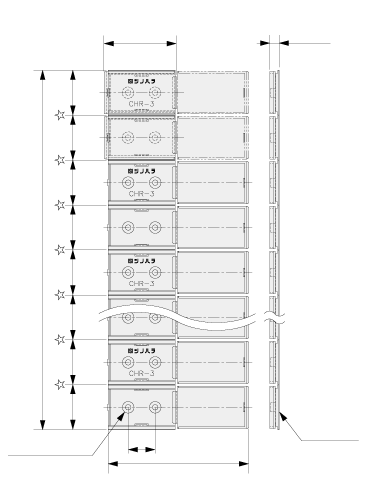

A
(At the time ofcover close)
C
Approx.4
The back side
is with tape
250
Hole for plate screw
B
(At the time of cover open)
|
■Single type
■The example of use
|
|
