Intermediate Cleat for Insulated wire

Example of installation
Application

It can be used for the intermediate supporter ( as the stopper ) to the insulated wires.
Features

6 mm dia. holes are provided in each 20 mm length of the PVC extruded structure material and the insulated wires can be fixed with the plastic band easily.

Material
PVC resin
Part Number

P
W
FKT-1000
P20X44=880
900
FKT-2000
P20X99=1980
2000

フリークリート取付台　
▲PAGE TOP
WS Type Supporter for Insulated wire

Application

It can be used for the supporter of Insulated wires at the distribution and control panel boards.
Features

There are 3 type products and the various insulated wires can be supported with the combination of WS-1 and WS-2.

Material
Fiber reinforced polycarbonate, black color

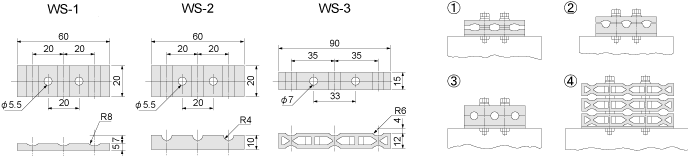

Combination
Available wire size
①
WS-1, WS-1
φ2～φ10
②
WS-1, WS-2
φ4～φ08
③
WS-2, WS-2
φ4～φ08
④
WS-3, WS-3
φ4～φ12
ＷＳ電線サポーター
