EI Supporter
|
|
|
It can be used as the insulating supporter for mounting instruments to Distribution Panel Board, Control Board, Rectifier Board, and the wiring of Bus bars and Wires. |
|
1) The load bearing property is mush superior than the usual type and then it can be used widely.
2) Good insulating property, light weight and not easily broken |
Material |
| Epoxy resin |
|

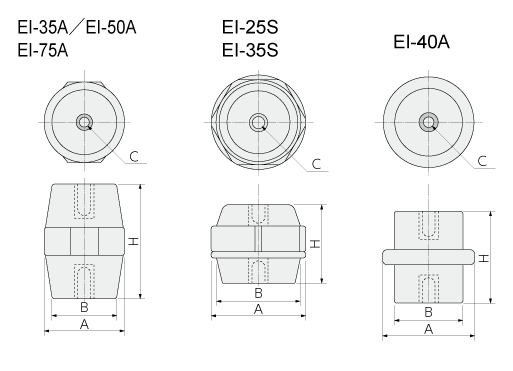

Part Number |
A
（mm） |
B
（mm） |
C×Effective
depth(mm) |
H
（mm） |
Bending breakdown
strengt
（kgf） |
Tensile breakdown strength
（kgf） |
AC Withstand Voltage
（1min） |
| EI-35A |
32 |
28 |
M 8×10 |
35 |
150 |
500 |
2.5kV
|
| EI-40A |
40 |
30 |
M 8×12
|
40 |
200 |
500 |
2.5kV
|
| EI-50A |
36 |
29 |
M 8×10 |
50 |
200 |
500 |
2.5kV
|
| EI-75A |
50 |
36 |
M10×20 |
75 |
250 |
1000 |
2.5kV
|
| EI-25S |
30 |
27 |
M 6× 7 |
25 |
100 |
250 |
2.5kV
|
| EI-35S |
42 |
37 |
M 8×10 |
35 |
100 |
500 |
2.5kV
|
 |
|
| ▲PAGE TOP |
|
Junction Unit of High Voltage Epoxy Resin Insulator with Olastic cover
|
Example of installation
|
|
It can be used as the insulating supporter for mounting instruments to Distribution Panel Board, Control Board, Rectifier Board, and the wiring of Bus bars and Wires. |
|
1) It is easily to attach the terminals as the plastic cover is vertical structure.
2) The emerged junction point can be seen clearly as the cover is transparent.
3) It is safer as the emerged junction point is covered with the cover when touched. |
Test Results |
1) No flush over will occur between the metal terminal and the metal attached to the surface of the cover at AC 22 kV 1 min..
2) No electrical breakdown will occur against the cover itself at AC 22 kV 1 min.
3) Withstand load: 180 kgf |
|
|
|
|
|
|
|
|
Polycarbonate M8X50 |
|
|
Polycarbonate |
|
|
|
|
|
|
|
|
Epoxy Resin |
|
Applicable Wire Size |
|
|
Current Carrying capacity |
|
|
Part Number |
|
B |
C |
H |
JT-60 |
60 |
110 |
2-φ 8.5
|
133 |
JT-150 |
66 |
160 |
2-φ10.5 |
140 |
Installation Method
 |
|
|
|
| ▲PAGE TOP |
|
Insulating Plastic Bushing
|

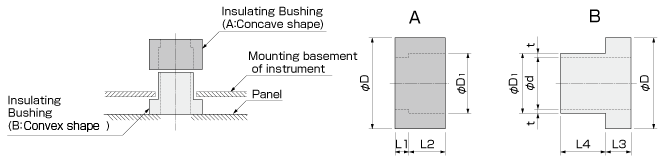

Example of installation
|
|
It can be used for keeping various instruments such as sequencers and inverters to be isolated from ground. |
|
1) It can be used as shown in the example of installation with a set of concave and convex shaped bushing to keep instruments be isolation from ground.
2) It can be available for the use of M4, M5, M6, M8, M10 and M12 Bolt. |
Material |
| Polypropylene resin ( Black color ) |
|
| Creeping flashover voltage |
Withstands AC 22 kV 1 min |
| Impulse Voltage |
Withstands AC 60 kV 3 times |
| Temperature range of the use |
- 15～ 90 ℃ |
| Withstanding load |
0.98 kN ( 100 kgf. ) |
|
|
Part Number |
Suitable bolt dia.Size |
凹（A） |
凹（B） |
Compressive breakdown strength（kN）
|
φD |
φD1 |
L1 |
L2 |
φD |
φD1 |
φd |
L3 |
L4 |
| IB-4 |
M4 |
10 |
4.9 |
1.3 |
4.7 |
8 |
4.8 |
4.2 |
3 |
5 |
0.88 |
| IB-5 |
M5 |
12 |
5.9 |
1.3 |
4.7 |
10 |
5.8 |
5.2 |
3 |
5 |
0.88 |
| IB-6 |
M6 |
14 |
7.9 |
1.5 |
5.5 |
12 |
7.8 |
6.5 |
3 |
6 |
1.18 |
| IB-8 |
M8 |
16 |
10 |
2.5 |
7.5 |
14 |
9.8 |
8.5 |
5 |
8 |
1.76 |
| IB-10 |
M10 |
18 |
12 |
2.8 |
8.2 |
16 |
11.8 |
10.5 |
5 |
9 |
1.96 |
| IB-12T |
M12 |
- |
- |
- |
- |
30 |
20 |
13 |
7 |
4 |
3.43 |
|
|
