Low Voltage Branched Bus Bar Supporter
|
|
|
Low Voltage Branched Bus Bar Supporter
|
|
Application

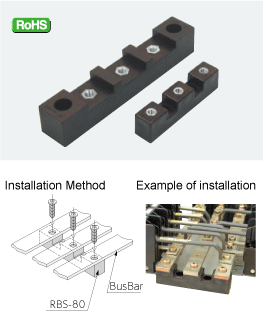

It can be used as the supporter for the low voltage bus bar at the distribution panel board.
RBS-80, RBS-90 for less than 20 mm width of the bus bar
RBS-145 for less than 25 mm width of the bus bar
RBS-40F-5 for M5 screw
RBS-40F-6 for M6 screw
Features
1) The manual processing of insulating material can be omitted.
2) Polypropylene resin, light weight and not easily broken
3) Good insulating property ( for low voltage)
Material
Reinforced Polypropylene resin ( Black color )
Test Results
Withstand longitudinal flush over voltage : AC 22 kV 1 min
Withstand impulse voltage: 40 kV 3 times
Withstanding load : 0.98 kN ( 100 kgf )
|
|
|
|
| ▲PAGE TOP |
|

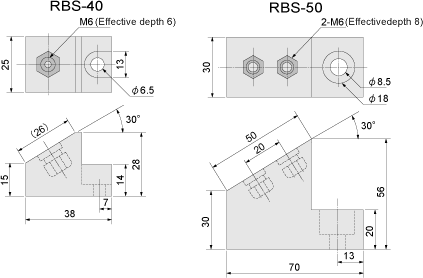

Slope Shaped Bus BarSupporter
|
|
| ▲PAGE TOP |
|

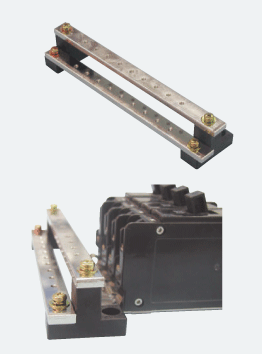

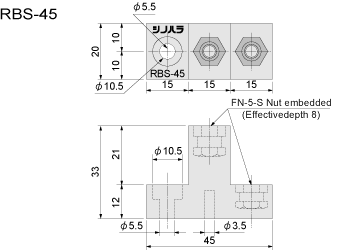

3 Steps Type Supporter for low voltage use
|
Example of installation
 |
Application
It can be used for the supporter to the bus bar
Features
1) The copper belts can be fixed simply and firmly with the square nut
2) ABS resin type, light weight and not easily broken.
Material
ABS Resin, Black color and Green color
|
 |
Part Number |
Screw thread |
A |
B |
C
|
D |
E |
F |
G |
H |
φA |
φB |
Square Nut |
Package quantity |
| RBS-122-4 |
M4
|
122 |
20 |
104 |
30 |
10 |
200 |
16 |
52 |
φ10.5/φ5.3
|
φ7.5
|
F-4 |
50 |
| RBS-122-5 |
M5
|
F-5 |
| RBS-122-6 |
M6
|
F-6 |
| RBS-200-6 |
M6
|
200 |
40 |
175 |
50 |
15 |
25 |
25 |
75 |
φ14/φ6.5 |
φ11.5 |
OM-6
|
25 |
| RBS-200-8 |
M8
|
OM-8
|
| RBS-200-10 |
M10
|
OM-10 |
|
|
| ▲PAGE TOP |
|
2 Stage Type Supporter for indoor use at low voltage
|
|
