TOP ＞Product＞Installation Products for Panel Board ＞Insulating Protection Bracket ・ SS Bushing |
| Installation Products for Panel Board |
|
|
| |
|

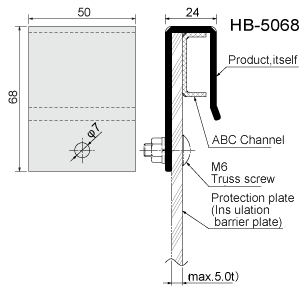

| Insulating Protection Bracket |
Example of installation
|
|
It can be used to mount the insulating protection plate, which is the insulation barrier to the live line, at the cubicle and the panel board. |
|
1) The insulating protection plate can be hanged on and then it needs not to make the holes and to have any processing.
2) No need to make the tapping to the panel and it can be set up in a single operation.
3) It can be easily taken the bracket in and out and the maintenance time can be reduced with good workability.
4) As the fixing screws are not necessary, it can be safely to mount the bracket and the plate without the anxiety, which the fixing screws will be lost.
5) The insulating protection plate and the bracket can be provided as a set, if requested. |
| Material |
Polypropylene, milky white color |
 |
|
| ▲PAGE TOP |
|

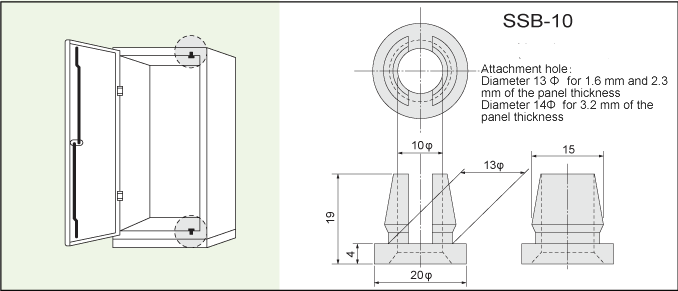

| SS Bushing |
 |
|
It can be used as the insertion bushing for the lock shaft to the door at the panel board. |
|
1) When the door at the panel board will be locked, the tapered part of the bushing can move the lock shaft to locking holes smoothly.
2) The vibration noise can be restrained
3) The rust and the peeling of paint around the locking holes can be prevented by opening and closing of the lock shaft.
4) SS Bushing can be mounted in a single action. |
Material |
66 Nylon molding product with good abrasion resistant and slippage properties |
|
|
|
|
|
