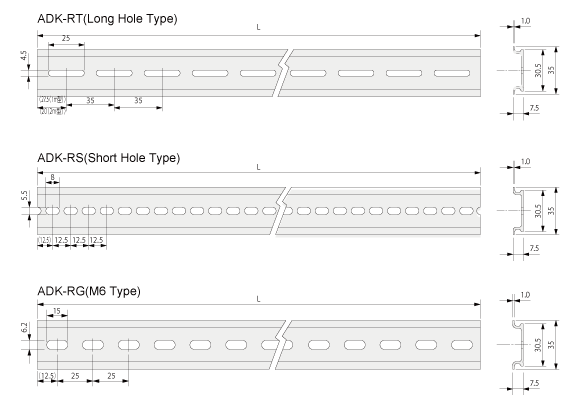

These products can be used as the metal fittings with 35 mm width in compliance with DIN Standard for attaching the instruments.

1) These products are in compliance with JIS Standards JIC-C-2812.
2) Terminal blocks, Sockets and Electronic equipment, which are in compliance with DIN Standard for 35mm width rail,can be attached freely at any locations and it is easy to be taken off freely from the rail.

Materials

Aluminum plate or Steel plate (SDS)
