Insulateing Supporter for Bus Bar(Low Voltage Supoorter:FRP Cleat Type
|
|
It can be used as the insulating supporter of the low voltage bus bar at the panel board and so on. And also it can be used as the insulating separator at the middle point of the bus bar conductor. |
|
FRP material is used as the insulation of this supporter and the features are shown as follows.
| 1)Light weight |
6)High resistance for the humidity |
| 2)No rust |
7)High arc resistance |
| 3)Good mechanical property |
8)No special treatment needed after processing like the Bakelite |
| 4)Good insulating property |
| 5)Good processing |
|
|
Material |
FRP extruded material
( Constructional material of glass fiber reinforced thermoset resin ) |
|
|
| ▲PAGE TOP |
|
Insulateing Supporter for Bus Bar K Type(Low Voltage Supoorter:FRP Cleat Type
|
![]](../../../_shouhin/zetsuen/img/KD.gif)
Example of installation
|
| Test Results |
)Mechanical result
for Loading test between Bus bars（200mm） (Test speed 5mm/min)
| KD Type |
40.7 kN ( 4150 kgf ) ( Max. load ) |
| KD-2 Type |
19.6 kN ( 2000 kgf ) ( Max, load ) |
| KT Type |
19.6 kN ( 2000 kgf ) ( Max. load ) |
2)Electrical result
No flashover occurred at 2.5kV AC 1min
|
 |
K Type FRP Cleat Long length Type
Stanndard size（mm）
Part Number |
L |
H |
W |
N |
| KD-L3 |
3000 |
52 |
32 |
22 |
| KD2-L3 |
3000 |
52 |
32 |
25 |
KT-L3
|
3000 |
40 |
25 |
19 |
K Type FRP Cleat Stanndard size（mm）
Part Number |
Length
L |
Height
H |
Outer-eidth
W |
Innerwidth
N |
B |
C |
D |
A |
P |
| KD-100-6 |
260 |
52 |
32 |
22 |
100 |
7.5 |
20 |
30 |
100 |
| KD-100-8 |
260 |
52 |
32 |
22 |
100 |
9.5 |
20 |
30 |
100 |
KD-100-10
|
260 |
52 |
32 |
22 |
100 |
11.5 |
20 |
30 |
100 |
| KD2-100-6 |
260 |
52 |
32 |
25 |
100 |
7.5 |
20 |
30 |
100 |
| KD2-100-8 |
260 |
52 |
32 |
25 |
100 |
9.5 |
20 |
30 |
100 |
| KD2-100-10 |
260 |
52 |
32 |
25 |
100 |
11.5 |
20 |
30 |
100 |
| KT-100-6 |
260 |
40 |
25 |
19 |
100 |
7.5 |
15 |
30 |
100 |
| KT-100-8 |
260
|
40 |
25 |
19 |
100 |
9.5 |
15 |
30 |
100 |
| KT-100-10 |
260 |
40 |
25 |
19 |
100 |
11.5 |
15 |
30 |
100 |
|
|
| ▲PAGE TOP |
|
P Type FRP Cleat Long length Type : Standard size
|
Example of installation
|
| Test Results |
1)Mechanical result :
for Loading test between Bus bars（200mm） (Test speed 2mm/min)
| P Type |
23.8 kN ( 2425 kgf ) ( Max. load ) |
2)Electrical result
No flashover occurred at 2.5kV AC 1min
|
 |
|
P Type FRP Cleat Long length Type
Stanndard size（mm）
Part Number |
L |
| P-L2530 |
2530 |
P Type FRP Cleat Stanndard size（mm）
Part Number |
Length
L |
P |
A |
C |
B |
Thickness of Bus bar |
Hole size |
| P-80-6 |
220 |
80 |
30 |
7.5 |
80 |
6 |
8.5 |
| P-80-8 |
220 |
80 |
30 |
9.5 |
80 |
8 |
8.5 |
| P-80-10 |
220 |
80 |
30 |
11.5 |
80 |
10 |
8.5 |
| P-100-6 |
260 |
100 |
30 |
7.5 |
100 |
6 |
8.5 |
| P-100-8 |
260 |
100 |
30 |
9.5 |
100 |
8 |
8.5 |
| P-100-10 |
260 |
100 |
30 |
11.5 |
100 |
10 |
8.5 |
|
|
| ▲PAGE TOP |
|

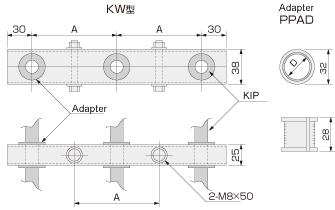

FRP Cleat Indoor Type Supporter of High Voltage Insulated Wire
|
Example of installation
 |
|
It can be used indoor for supporting of high violated insulated wires and |
|
FRP material is used as the insulation of this supporter and the features are shown as follows.
| 1)Light weight |
6)High arc resistance |
| 2)rust proof |
7) The distance
(A)between phases can be made freely |
| 3)Good mechanical property |
| 4)Good insulating property |
| 5)High resistance for the humidity |
|
Material |
| FRP extruded material(Constructional material of glass fiber reinforced thermoset resin) |
|
Part Number |
Available Wire Size |
Adapter |
KIP |
MLFC |
No. |
P/N |
D |
| KW-100-3-1 |
5.5 |
|
1 |
PPAD-1 |
11 |
| KW-100-3-2 |
|
5.5 |
2 |
PPAD-2 |
11.5 |
| KW-100-3-3 |
8 |
|
3 |
PPAD-3 |
12 |
| KW-100-3-4 |
14 |
14 |
4 |
PPAD-4 |
13 |
| KW-100-3-5 |
22 |
|
5 |
PPAD-5 |
14 |
| KW-100-3-6 |
|
22 |
6 |
PPAD-6 |
15 |
| KW-100-3-7 |
38 |
|
7 |
PPAD-7 |
16 |
| KW-100-3-8 |
|
38 |
8 |
PPAD-8 |
16.5 |
| KW-100-3-9 |
60 |
|
9 |
PPAD-9 |
18 |
| KW-100-3-10 |
|
60 |
10 |
PPAD-10 |
19.5 |
| KW-100-3-11 |
100 |
|
11 |
PPAD-11 |
21 |
| KW-100-3-12 |
|
100 |
12 |
PPAD-12 |
22.5 |
| KW-100-3-13 |
150 |
|
13 |
PPAD-13 |
25 |
|
|
