Steel Type Window Frame for Instrument SN Type ans SNS Type

Features

1) Light weight, simple installation and good workability
2) Weather resistant, good appearance and the value of the panel installed with this window frame can be increased.
3) Steel Type and Stainless steel Type can be provided, if requested.

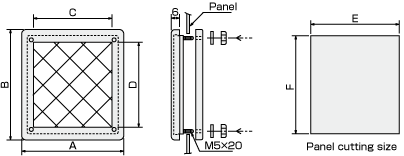

Standard specification

Part Number		Outer size A×B	Effective glass size C×D	Panel cutting size E×F
Steel plate	Stainless steel plate	Outer size A×B	Effective glass size C×D	Panel cutting size E×F
SN-1010　A	SNS-1010　A	116×116	85×85	105×105
SN-1010　K	SNS-1010　K	116×116	85×85	105×105
SN-1015　A	SNS-1015　A	116×166	85×135	105×155
SN-1015　K	SNS-1015　K	116×166	85×135	105×155
SN-1520　A	SNS-1520　A	166×232	135×200	155×220
SN-1520　K	SNS-1520　K	166×232	135×200	155×220

	Component Name	Material Specification
①	Window frame	SN Type：Steel plate 1.2mm Acryl painting surface(Black) SNS Type：Stainless steel plate 1.2mm Hairline finishing
②	Glass	Metal wired glass ( 6.8 mm thick ) Tempered glass ( 6.0 mm thick )
③	Packing	Neoprene rubber
④	Holding frame	SN Type：Steel plate 1.2mm Acryl painting surface(Black) SNS Type：Stainless steel plate 1.2mm Hairline finishing
⑤	Attachment bolt	SN Type：M5 stud bolt SNS型：M5 stud bolt(SUS)
⑥	Applicable panel	1.6-3.2 mm thickness

Remarks for the use of Steel Type window frame for Instrument,SN Type and SNS Type
1)	Final no. of P/N A means Metal wired glass 6.8 mm thick K means Tempered glass 6.0 mm thick At ordering, please make the glass grade according to P/N of the window frame such as SN-1010A orSN-1010K.
2)	Attachment Nuts shall be fixed firmly and uniformly with the suitable torque, 1.0 N・m(10 kgf・cm )
