Sliding Type Metal Mount for Divergent Circuit Breaker
Sliding Type Metal Mount for Divergent Circuit Breaker
Application

It can be used as the metal mount for main circuit breaker.
Features

1) The mounting height can be adjusted freely with sliding parts.
2) 15 various size mounts can be selected against 50AF to 400AF main circuit breakers

Materials

Trivalent Chromate plating steel, 2.3 mm Thicknes.

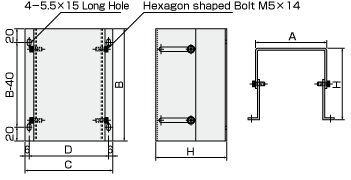

Sliding Type Metal Mount for Divergent Circuit Breaker

Part Number
A
B
C
D
H（Adjustable height）
Weight
(kg)
BDM-A-95
80
135
107
95
60～ 95
0.68
BDM-A-125
90～ 125
0.76
BDM-A-155
120～ 155
0.84
BDM-A-185
150～ 185
0.92
BDM-A-215
180～ 215
1.00
BDM-A-245
210～ 245
1.08
BDM-B-145
110
170
137
125
85～ 145
1.3
BDM-B-200
140～ 200
1.6
BDM-B-255
195～ 255
1.9
BDM-B-310
250～ 310
2.2
BDM-B-365
305～ 365
2.5
BDM-B-500
275～ 500
3.5
BDM-C-145
145
260
172
160
85～ 145
2.0
BDM-C-200
140～ 200
2.6
BDM-C-255
195～ 255
3.1
