Structural materials for panel boards | ABC channel

Product

ABC Channel(Flat bar)


Angle	Channel	CC Type	CL Type	ZAM Type

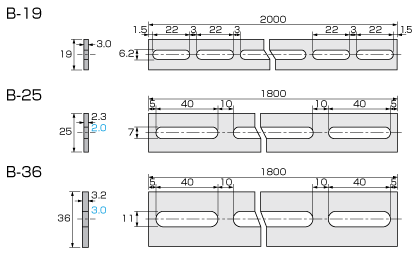

Part Number	Material	Surface treatment	Thicknesst （mm）	WidthA （mm）	Length （mm）	Weight （kg）	Pcs of one package	Figure
B-19E	SPHC Steel	Trivalent chromate plating steel product	3.0	19	2,000	0.6	40	B-19
B-19N		No metal plating	3.0	19	2,000	0.6	40	B-19
B-25E		Trivalent chromate plating steel product	2.3	25	1,800	0.6	40	B-25
B-25N		No metal plating
B-25ZN		Galvanized Zinc plating steel product
B-36E	SPHC Steel	Trivalent chromate plating steel product	3.2	36	1,800	1.3	20	B-36
B-36N		Trivalent chromate plating steel product
B-36ZN		Galvanized Zinc plating steel product
B-25SUS	SUS304	Stainless steel	2.0	25	1,800	0.6	40	B-25
B-36SUS	SUS304	Stainless steel	3.0	36	1,800	1.1	20	B-36
