Inset Packing
Inset Packing
Application

It can be used as the packing for the aperture of the panel board and the cabinet.
It is excellent water proof and suitable for the packing as the draining.

Features

1) It is not necessary for the sheet metal working to the complicated draining by using it for the aperture of the cabinet.
2) It is efficient in working as the packing can be inserted to the edge face of sheet metal and mounted easily.

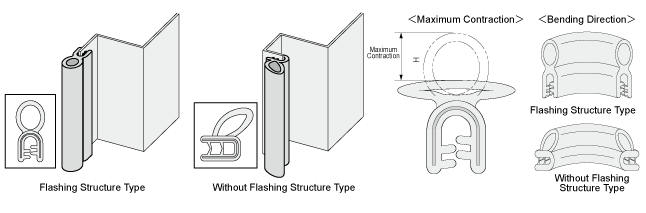

3) Two type of the packing can be selected according to the application such as the vertical sheet metal edge ( without draining ) and the horizontal sheet metal edge ( with draining ) against the door contact place.

Material

Ethylene propylene rubber ( EPDM )
Note: CR-E and F is made of chloroprene rubber.


EPDM-B
EPDM-C
EPDM-C-20
インセットパッキン EPDM-B
インセットパッキン EPDM-C
EPDM-D
EPDM-E
EPDM-S-1
インセットパッキン EPDM-D
インセットパッキン EPDM-E
インセットパッキン EPDM-S-1
EPDM-T
EPDM-TM
EPDM-Y-002
インセットパッキン EPDM-T
インセットパッキン EPDM-Y-002
CR-Y-1
CR-E Equivalent to UL94-HB
CR-F Equivalent to UL94-V-O

インセットパッキン CR-F
CR-F-3.2 Equivalent to UL94-V-O
CR-H Equivalent to UL94-V-O
Bending direction
インセットパッキン CR-F-3.2
インセットパッキン 曲げ方向

P/N
Minimum bending radius
Available plate thicness(mm)
Holding force
Insertion force
Plate thickness
at Test
Standard length
EPDM-B
50
1.2~2.3
>5kg/ 100m/m
<3.0kg/ 30m/m
1.6m/m
25m
EPDM-C
40
0.8~2.3
>3kg/ 100m/m
<1.5kg/ 30m/m
1.0m/m
25m
EPDM-C-20
40
2.3~3.2
>3kg/ 100m/m
<3.0kg/ 100m/m
2.0m/m
25m
EPDM-D
20
0.8~2.3
>5kg/ 100m/m
<4.5kg/ 100m/m
0.8m/m
25m
EPDM-E
40
0.8~2.3
>5kg/ 100m/m
<4.5kg/ 100m/m
0.8m/m
25m
EPDM-S-1
40
1.2
>4kg/ 100m/m
<3.5kg/ 100m/m
1.2m/m
25m
EPDM-T
50
0.8~2.3
>7kg/ 100m/m
<3.0kg/ 30m/m
0.7m/m
7m
EPDM-TM
20
0.8~2.3
>3kg/ 100m/m
<1.5kg/ 30m/m
1.0m/m
50m
EPDM-Y-002
15
2.3
>4kg/ 100m/m
<3.5kg/ 100m/m
1.2m/m
25m
CR-E
40
1.23~2.3
>7kg/ 100m/m
<7.0kg/ 100m/m
2.3m/m
12m
CR-F
20
0.8~2.3
>11kg/ 100m/m
<10.0kg/ 100m/m
2.0m/m
25m
CR-F-3.2
20
3.2
>11kg/ 100m/m
<10.0kg/ 102m/m
3.2m/m
25m
CR-H
15
2.3
>4kg/ 100m/m
<8.0kg/ 100m/m
2.3m/m
7m
CR-Y-1
20
2.3~3.2
>4kg/ 100m/m
<8.0kg/ 100m/m
2.3m/m
50m

Inset Packing
