Groove Type Packing
Groove Type Packing
Application

It can be used for the protection to the aperture of the cabinets.

Features

1) RP-MB can be used widely for the panel plate from 1.6 to 3.2 mm thickness as the inner groove is prepared.
2) RP-MB-15 can be used for the protection to the cross section of the panel plate from 1.6 to 3.2 mm thickness.
3) RP-KE can be used widely for the panel plate from 0.8 to 2.3 mm thickness as it has high holding force with the inner metal core

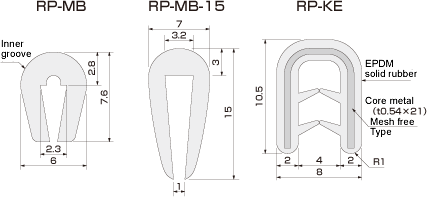

Groove Type Packing
P/N
RP-MB
RP-MB-15
RP-KE
material
Soft PVC(Black color)
Soft PVC(Black color)
EPDM Solid Rubber(Black color)
Available Panel Plate Thickness
1.6 to 3.2mm
1.6 to 3.2mm
0.8 to 2.3mm
Hardness
60 degree
65degree
-
Holding Force
-
-
>5kg/100mm for 0.8mm plate
Standard length
100m
50m
25m
Allowable temperture
-20 to 60℃
-20 to 60℃
-20 to 100℃

Groove Type Packing
