Straight tube LED(equivalent for fluorescent light 40W).
It is good news for those who use the straight tube fluorescent light 40W.
G13-21-14W50-85MO
(14W)
Features
・Color rendering properties were quite high and cheap straight tube LED was put on the market.
・The LED device currently used is made by Nichia Corp.
It is a LED type with a built-in power supply.
・There are two types of the luminous efficiency which has 116 lumens /Watt, and
130 lumens/Watt and it is a world record level.
※ When you attach this straight tube LED to the conventional apparatus,
please be sure to request a special contractor.
Straight tube LED
G13-21-14W-50-85MO
ELECTRICAL
Power Consumption
14W
Input Voltage
100〜240V
Input Frequency
50〜60Hz
ENVIRONMENT
Operating Temperature
-20〜+40℃
Storage Temperature
-40〜+60℃
Relative Humidity
20〜80％
Product Design Life (Hr)
40,000
OPTICAL
Typical Total Flux
2,100lm
Illumination @ 1m
360lx
Luminous efficiency
150lm/w
Viewing Angle
>170°
CCT
5,000K
CRI
Ra：>80
MECHANICAL
Cover
Polycarbonate
Base
G13, Bi-Pin
Outer Dimension (mm)
Φ26mm×1,198mm
Weight (g)
140g

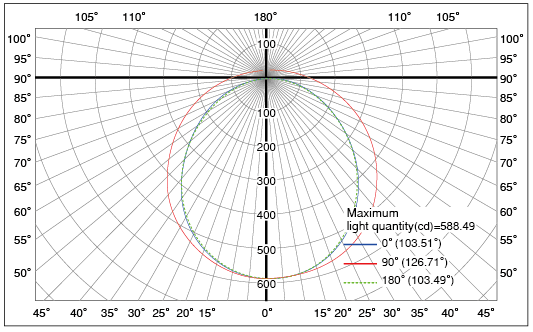

Photometric
Curve
Product outline
This straight tube LED is a type with a built-in power supply.
The cap is using G13.Please supply the electric supply to two of one side. The red arrow shows the electric power supply side.
■ Connection example with the AC power supply.

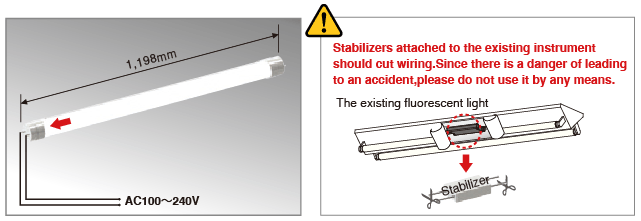

Straight tube LED is safe lighting.However,when you attach to the conventional light, please enforce by a special contractor.
The wiring diagram was indicated below.Please confirm this case to an enforcement contractor.
※ Please be sure to separate stabilizers attached to the conventional light from a wire connection circuit.
Wiring example 1 (for one light)
Wiring example 1 (for two lights)
※As for the wiring method here, a lamp installation direction is limited.In this case,please put the mark on the electric supply side on an appliance.
※As for the wiring method here, a lamp installation direction is limited.In this case,please put the mark on the electric supply side on an appliance.
Wiring example 1 (for one light)
Wiring example 1 (for two lights)
※As for the wiring method here, a lamp installation direction is limited.In this case,please put the mark on the electric supply side on an appliance.
※As for the wiring method here, a lamp installation direction is limited.In this case,please put the mark on the electric supply side on an appliance.
