High Voltage Type Epoxy Resin Insulation(for 6kv use)
Application
It can be used as the insulating supporter for mounting instruments to Distribution Panel Board, Control Board, Rectifier Board, and the wiring of Bus bars and Wires.
Features
1) It is smaller, lighter and much durable than the usual porcelain insulator and it can be rationalized for designing.
2) Good electrical and mechanical property
3) It is in compliance with JIS C 3851 specification.
Material
Epoxy resin with special treatmen.
Part Number
Insulation class
AC Withstand
Voltage
(kV)
Impuls Withstand
Voltage(kV)
Withstand Bending Load(N)
Tensile breakdown strength(N)

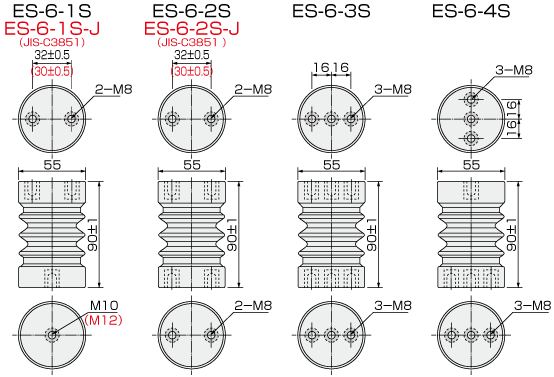

ES-6-1S
6A
22
60
4903
19614
ES-6-1S-J
ES-6-2S
ES-6-2S-J
ES-6-3S
ES-6-4S
Suitable fastening torque 9.4～12.1Nm(for M8 and M10)
