PP Holder (for Indoor Type Supporter of high voltage insulated wire )

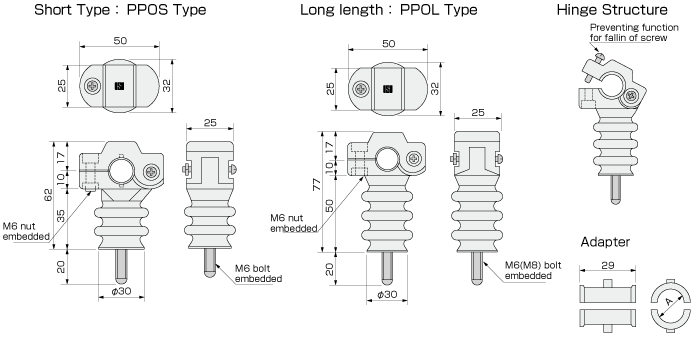

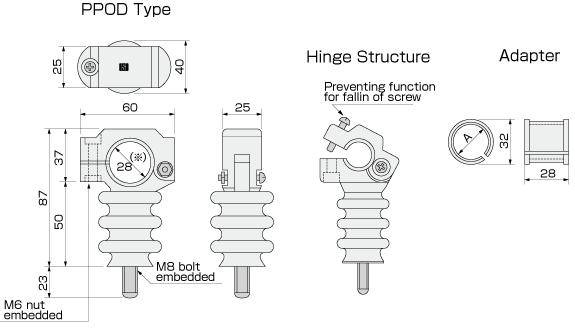

Example of installation

Application

It can be used for the indoor type supporter to high voltage insulated wires.

Features

1) The upper portion of the holder is hinge structure and then insulated wire can be fixed completely by fastening one screw of the holder.
2) The suitable adapter can be selected for the size of insulated wire for the holder.
3) good insulating property, light weight and not easily broken

Material

Reinforced polypropylene resin ( Black color )
Fire resistant type( UB ) can be provided, if requested.
The adapter is molded of the special plastic resin and no scratch can be made on the surface of the insulated wire.
Note: The products are in accordance with JIS C 4620.
Nut and Bolt : Trivalent Chromate plating

Creeping flashover voltage	Withstands AC 22 kV 1 min
Impulse Voltage	Withstands AC 60 kV 3 times
Temperature range of the use	- 15～ 90 ℃
Withstanding load	0.98 kN ( 100 kgf. )

Applicable wire size		Part Number					Adapter
KIP	MLFC (6.6kV)	OS Type	OS Type Fire-resistance	OL Type	OL Type Fire-resistance	OL Type Stainless	Part Number	A Size
8sq	8sq	PPOS-8	PPOS-UB-8	PPOL-8	PPOL-UB-8	PPOL-S-8	PPAL-8	12
14sq	14sq	PPOS-14	PPOS-UB-14	PPOL-14	PPOL-UB-14	PPOL-S-14	PPAL-14	13
22sq	-	PPOS-22	PPOS-UB-22	PPOL-22	PPOL-UB-22	PPOL-S-22	PPAL-22	14
38sq	30sq	PPOS-38	PPOS-UB-38	PPOL-38	PPOL-UB-38	PPOL-S-38	PPAL-38	16
60sq	38sq	PPOS	PPOS-UB	PPOL	PPOL-UB	PPOL-S	Without Adapter	-
