EP Holder (for Indoor Type Supporter of high voltage insulated wire )

Example of installation

Application

It can be used for the indoor type supporter to high voltage insulated wires.

Features

1) EP Holder is in accordance with the standard for Cubicle Type Power Incoming Unit designed for Emergency Electric Power Supply, established by Japan Electrical Association.
2) The suitable adapter can be selected for KIP insulated wire size from 5.5 to 250 mm2 conductor.
3) Good insulating property, light weight and not easily broken.

Material

Reinforced Polypropylene resin ( Black color )

Creeping flashover voltage	Withstands AC 22 kV 1 min
Impulse Voltage	Withstands AC 60 kV 3 times
Withstanding load	0.98 kN ( 100 kgf. )

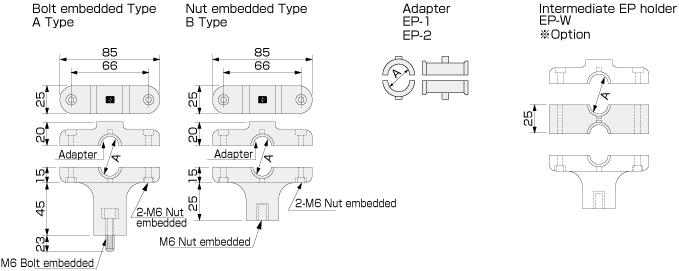

Part Number		Applicable wire size	Adapter		Intemediate EP holde
A　Type	B　Type	KIP	Part Number	Size A	Part Number	Size A
EP-A-1	EP-B-1	5.5～8sq	EP-1	12	EP-W	18
EP-A-2	EP-B-2	14～22sq	EP-2	14
EP-A-18	EP-B-18	38～60sq	Without Adapter	18
EP-A-21	EP-B-21	100sq	Without Adapter	21
EP-A-24	EP-B-24	150sq	Without Adapter	24

▲PAGE TOP

PP Holder Type:G(for Indoor Type Supporter of high voltage insulated wire )

Example of installation

Application

It can be used for the indoor type supporter to low voltage insulated wires.

Features

1) Insulated wire can be fixed easily and firmly with plastic band at the top of PP holder
2) 3 various height of PP holder can be selected for the application.
3) Good insulating property, light weight and not easily broken.

Material

Reinforced Polypropylene resin ( Black color

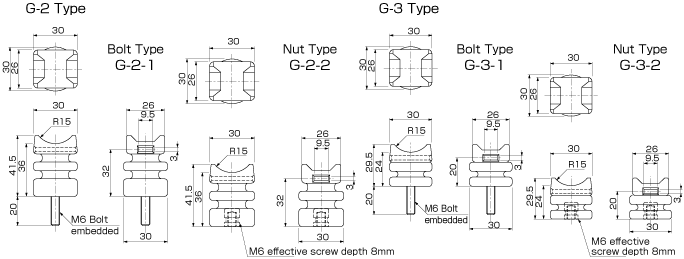

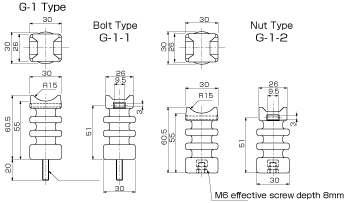

Part Number	Type
G-1-1	Bolt
G-1-2	Nut
G-2-1	Bolt
G-2-2	Nut
G-3-1	Bolt
G-3-2	Nut
